Page 1000 - IGUS Bearing

igubal igubal
®
®
®
®
spherical igubal spherical balls | Product range igubal spherical balls | Product range spherical
balls balls

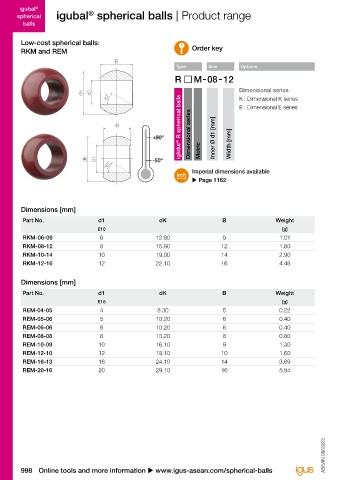

Low-cost spherical balls: High temperatures spherical balls:
RKM and REM Order key XKM and XEM Order key

B B
Type Size Options Type Size Options

dk d1 Dimensional series dk d1 Dimensional series
30° K : Dimensional K series 30° K : Dimensional K series
iglidur ® R spherical balls iglidur ® X spherical balls
E : Dimensional E series
E : Dimensional E series

B B
+90º Dimensional series Inner Ø d1 [mm] Width [mm] +250º Dimensional series Inner Ø d1 [mm] Width [mm]

dk d1 -50º Metric dk d1 -100º Metric
30° 30°
Imperial dimensions available
u Page 1162

Dimensions [mm] Dimensions [mm]

Part No. d1 dK B Weight Part No. d1 dK B Weight
E10 [g] E10 [g]
RKM-06-09 6 12.80 9 1.01 XKM-10-14 10 19.10 14 2.90
RKM-08-12 8 15.90 12 1.80 XKM-16-21 16 28.40 21 9.40
RKM-10-14 10 19.00 14 2.90
RKM-12-16 12 22.10 16 4.48

Dimensions [mm] Dimensions [mm]

Part No. d1 dK B Weight Part No. d1 dK B Weight
E10 [g] E10 [g]
REM-04-05 4 8.30 5 0.22 XEM-05-06 5 10.30 6 0.40
REM-05-06 5 10.20 6 0.40 XEM-06-06 6 10.20 6 0.40
REM-06-06 6 10.20 6 0.40 XEM-08-08 8 13.30 8 0.80
REM-08-08 8 13.20 8 0.80 XEM-10-09 10 16.10 9 1.30
REM-10-09 10 16.10 9 1.30 XEM-12-10 12 18.10 10 1.60
REM-12-10 12 18.10 10 1.60 XEM-16-13 16 24.10 13 3.83
REM-16-13 16 24.10 14 3.69 XEM-20-16 20 29.10 16 6.15
REM-20-16 20 29.10 16 5.94

ASEAN 09/2023 ASEAN 09/2023

998 Online tools and more information u www.igus-asean.com/spherical-balls 3D CAD files, prices and delivery time online u www.igus-asean.com/spherical-balls 999
