igubal
®
®
spherical igubal spherical thrust bearing | Product range
thrust
bearings
Spherical thrust bearings: SAM
Order key

Type Size

Inner Ø d1 [mm]

Spherical washer Type Metric
R

R h1 Material:
®
d1 Spherical washer: iglidur W300 u Page 175
d2 h1 Housing pad: igumid G u Page 1190
®
d1
Housing pad d2
h2
d3
h2
d3

Technical data
Part No. Max. static Max. static Weight
axial compressive strength axial compressive strength
Short-term Long-term
[N] [N] [g] ®

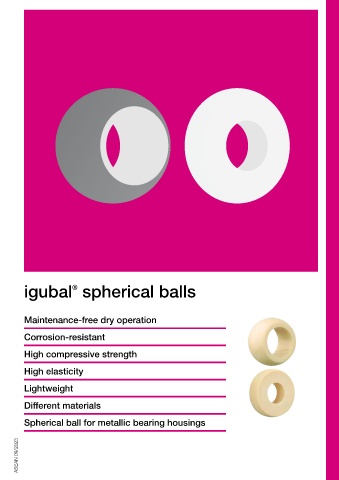

SAM-05 4,000 2,000 0.9 igubal spherical balls
SAM-06 5,000 2,500 1.1
SAM-08 8,000 4,000 2.2
SAM-10 10,000 5,000 3.4 Maintenance-free dry operation
SAM-12 12,000 6,000 5.9
SAM-16 17,000 8,500 8.5 Corrosion-resistant
SAM-20 22,000 11,000 12.8
High compressive strength
Dimensions [mm]
Part No. d1 d3 d2 h1 h2 H 34) R Compensation High elasticity
Spherical washer Housing pad Spherical Housing pad Overall height Radius angle
DIN 2768 medium DIN 2768 medium washer
SAM-05 5.2 7.0 15 3.0 3.5 4.7 15 3º Lightweight
SAM-06 6.2 7.5 16 3.0 4.0 5.3 16 3º
SAM-08 8.2 10.0 20 4.0 5.0 6.8 20 2º Different materials
SAM-10 10.2 12.0 24 4.5 5.5 7.5 24 2º
SAM-12 12.5 14.5 30 5.0 6.2 8.0 32 2º Spherical ball for metallic bearing housings
SAM-16 16.2 19.0 36 5.5 6.5 8.7 40 2º
SAM-20 20.2 23.0 44 6.0 7.0 8.6 45 2º

34) In assembled condition ASEAN 09/2023 ASEAN 09/2023

992 Online tools and more information u www.igus-asean.com/spherical-thrust-bearings
