igubal igubal
®
®
®
®

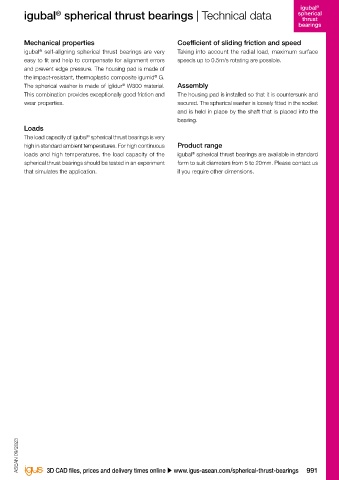

spherical igubal - spherical thrust bearing igubal spherical thrust bearings | Technical data spherical
thrust thrust
bearings bearings
igubal self-aligning spherical thrust bearings are very easy to fit and help to compensate for alignment Mechanical properties Coefficient of sliding friction and speed
®
errors and prevent edge pressure. igubal self-aligning spherical thrust bearings are very Taking into account the radial load, maximum surface
®
easy to fit and help to compensate for alignment errors speeds up to 0.5m/s rotating are possible.
and prevent edge pressure. The housing pad is made of
the impact-resistant, thermoplastic composite igumid G.
®
Easy installation When do I take them? The spherical washer is made of iglidur W300 material. Assembly
®
● If you want to save weight This combination provides exceptionally good friction and The housing pad is installed so that it is countersunk and
Compensation of ● If corrosion resistance is requested wear properties. secured. The spherical washer is loosely fitted in the socket
When a bearing with low coefficient of friction
misalignment errors ● and is held in place by the shaft that is placed into the
is required bearing.
Loads
Compensation of The load capacity of igubal spherical thrust bearings is very
®
edge loads high in standard ambient temperatures. For high continuous Product range
When do I not take them? loads and high temperatures, the load capacity of the igubal spherical thrust bearings are available in standard
®
Very good friction ● At very high loads spherical thrust bearings should be tested in an experiment form to suit diameters from 5 to 20mm. Please contact us
When temperatures are higher than +80°C
and wear properties ● that simulates the application. if you require other dimensions.
● When high speeds have to be achieved

Available from stock
Detailed information about delivery time online.

Price breaks online

No minimum order value. No minimum order quantity

Max. +80°C
min. -30°C

1 type
Ø 5 - 20mm

Online product finder
u www.igus-asean.com/igubal-finder

ASEAN 09/2023 ASEAN 09/2023

990 Online tools and more information u www.igus-asean.com/spherical-thrust-bearings 3D CAD files, prices and delivery times online u www.igus-asean.com/spherical-thrust-bearings 991
