igubal igubal
®
®
®
®

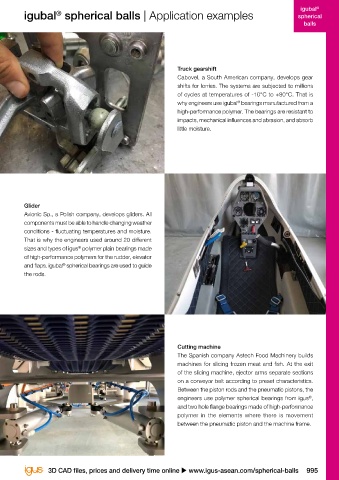

spherical igubal spherical balls igubal spherical balls | Application examples spherical
balls balls
Every single iglidur material has its own special properties, which determines the suitability for your
®
special applications and requirements. We have available spherical balls made from iglidur materials
®
W300 (standard), J, J4, R, A181, FC180, UW and X. The spherical balls for metallic bearing housings
are available in three materials for housing numbers 203 to 210. Truck gearshift
Cabovel, a South American company, develops gear
shifts for lorries. The systems are subjected to millions
of cycles at temperatures of -10°C to +80°C. That is
Maintenance-free, ®
dry operation When do I take them? why engineers use igubal bearings manufactured from a
● If you need maintenance-free material high-performance polymer. The bearings are resistant to
● When dimensional series E and K impacts, mechanical influences and abrasion, and absorb
components should be fitted little moisture.
Corrosion-resistant
®
● If different iglidur materials should be tested
● If high compressive strength is required

High compressive strength ● If high flexibility is required
● Replacing ball bearings in metallic housings

When do I not take them?
High elasticity ● When temperatures are higher than +250°C Glider
● When dimensions above 50mm are required Avionic Sp., a Polish company, develops gliders. All
● If rotation speeds of more than 0.5 m/s are to components must be able to handle changing weather
be achieved
conditions - fluctuating temperatures and moisture.
That is why the engineers used around 20 different
Tolerances
Lightweight sizes and types of igus polymer plain bearings made
®
Maintenance-free igubal spherical balls are
®
designed with an inner diameter tolerance of high-performance polymers for the rudder, elevator
®
according to E10. The shaft tolerance should be and flaps. igubal spherical bearings are used to guide
between h6 and h9. All values without tolerance the rods.
are dealt with according to DIN ISO 2768-m.
Different materials

For metallic bearing housings,
low moisture absorption Available from stock
Detailed information about delivery time online.
Cutting machine
Price breaks online The Spanish company Astech Food Machinery builds
No minimum order value. No minimum order quantity machines for slicing frozen meat and fish. At the exit
of the slicing machine, ejector arms separate sections
For metallic bearing housings, Depending on material on a conveyor belt according to preset characteristics.
FDA-compliant Between the piston rods and the pneumatic pistons, the
8 types engineers use polymer spherical bearings from igus ,
®
Ø 2 - 50mm and two hole flange bearings made of high-performance
polymer in the elements where there is movement
Imperial dimensions available
For metallic bearing housings, between the pneumatic piston and the machine frame.
FDA-compliant and high u From page 1162
resistance to temperatures Online product finder
u www.igus-asean.com/igubal-finder ASEAN 09/2023
