igubal ® ® igubal
double igubal coupling joints | Product range igubal threaded inserts | Product range New threaded
joints inserts

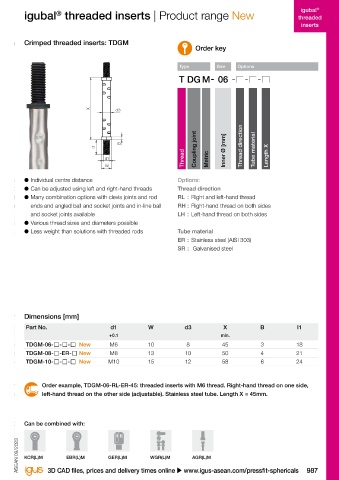

Crimped coupling joints with rotatable clevis Crimped threaded inserts: TDGM
joints: GDGM-05-V Order key Order key

Type Size Options Type Size Options

X d3

Clevis joint Coupling joint Metric Inner Ø [mm] Twistable Tube material Accessories l1 d1 B Thread Coupling joint Metric Inner Ø [mm] Thread direction Tube material Length X

W

● Lubrication and a1 a1 Options: ● Individual centre distance Options:
maintenance-free d1 b1 F : Spring-loaded fixing clip ● Can be adjusted using left and right-hand threads Thread direction

● Diameter 5mm l3 K : Clevis pin and circlip ● Many combination options with clevis joints and rod RL : Right and left-hand thread
● Individual alignment of ends and angled ball and socket joints and in-line ball RH : Right-hand thread on both sides
the clevis joint - rotation Material: and socket joints available LH : Left-hand thread on both sides
feature Housing: igumid G u Page 1190 ● Various thread sizes and diameters possible
®
● Combination with spring- Tube: Stainless steel (AISI 303) ● Less weight than solutions with threaded rods Tube material
loaded fixing clip or bolt ER : Stainless steel (AISI 303)
d3
and securing clip possible SR : Galvanised steel
X
● Other installation sizes
upon request

● Cost-effective solution
for small and medium d1 g
volumes

Dimensions [mm] Dimensions [mm]

Part No. d1 d3 X a1 a2 b1 g I3 Max. static Part No. d1 W d3 X B I1
tensile strain +0.1 min.
+0.3 +0.3 +0.3 Short-term Long-term TDGM-06- - - New M6 10 8 45 3 18
+0.1 min. -0.16 -0.16 +0.1 ±0.3 +0.3 [N] [N] TDGM-08- -ER- New M8 13 10 50 4 21
GDGM-05-V-ER- 5 10 90 10 10 5 10 5 150 75 TDGM-10- - - New M10 15 12 58 6 24

Order example, GDGM-05-V-ER-F, 100: coupling joint with clevis joints for a pin diameter of 5mm. Order example, TDGM-06-RL-ER-45: threaded inserts with M6 thread. Right-hand thread on one side,
Adjustable alignment of the bearing points. Stainless steel tube, two spring-loaded fixing clips left-hand thread on the other side (adjustable). Stainless steel tube. Length X = 45mm.
GEFM-05 DIN, centre distance 100mm, included

Can be combined with accessories u From page 1011: Can be combined with:

ASEAN 09/2023 ASEAN 09/2023

GEFM GBM GSR KCR(L)M EBR(L)M GER(L)M WGR(L)M AGR(L)M
986 Online tools and more information u www.igus-asean.com/pressfit-sphericals 3D CAD files, prices and delivery times online u www.igus-asean.com/pressfit-sphericals 987
