double igubal coupling joints | Product range double
joints joints

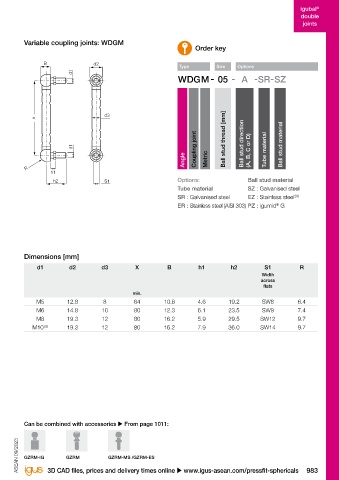

Variable coupling joints: WDGM Variable coupling joints: WDGM
Order key

B B d2
d2
● Socket cup M5, M6, M8 and M10 d1 d1 Type Size Options
● Individual centre distance
● Individual alignment of the bearing position

d3
d3
Material: x x
®
Housing: igumid G u Page 1190
Ball stud: Plastic, galvanised or stainless steel 28) Ball stud thread [mm]
Tube: Galvanised or stainless steel d1 d1 Ball stud direction Ball stud material
Version A Version B Version C Version D Coupling joint (A, B, C or D) Tube material
Angle Metric
R R
h1
h1
h2
h2 S1 Options: Ball stud material
Tube material SZ : Galvanised steel
SR : Galvanised steel EZ : Stainless steel 28)
ER : Stainless steel (AISI 303) PZ : igumid G
®

Technical data Dimensions [mm]

Part No. Max. static Max. static Max. d1 d2 d3 X B h1 h2 S1 R
tensile strain compressive force 190) pivot angle Width
across
Short-term Long-term Short-term Long-term flats
[N] [N] [N] [N] min.
WDGM-05-A-SR-SZ 32) 800 400 1,250 625 23° M5 12.8 8 64 10.8 4.6 19.2 SW8 6.4
WDGM-06-A-ER-SZ 145) 32) 1,700 850 2,400 1,200 25° M6 14.8 10 80 12.3 6.1 23.5 SW9 7.4
WDGM-08-A-SR-SZ 32) 950 475 3,200 1,600 24° M8 19.3 12 80 16.2 5.9 29.5 SW12 9.7
WDGM-10-A-SR-SZ 32) 950 475 3,200 1,600 24° M10 33) 19.3 12 80 16.2 7.9 36.0 SW14 9.7

28) Stainless steel ball stud upon request
32) Please add the required centre distance in mm
33) Housing’s size 8 with a special M10 stud, available only in metal
145) Size only available with stainless steel tube (ER)
190) The values refer to a length of 200mm

Can be combined with accessories u From page 1011:

Order example, WDGM-05-A-SR-SZ, 100: Coupling joint with 5mm ball stud thread, version A, tube material
ASEAN 09/2023 ASEAN 09/2023 GZRM-IG GZRM GZRM-MS /GZRM-ES
made of steel, ball stud made of steel, centre distance 100mm
