igubal igubal
®
®
®
double igubal double joints | Product range double
joints joints

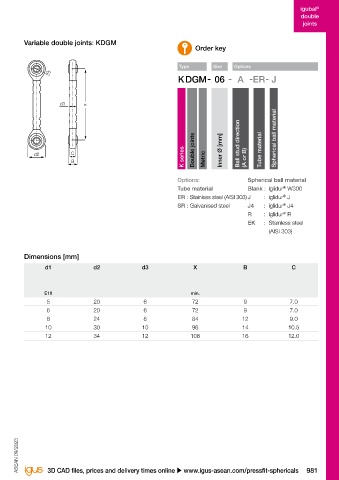

Variable double joints: KDGM Variable double joints: KDGM
Order key

Type Size Options
d1 d1
● Ball diameters 5, 6, 8, 10 and 12mm
● Individual centre distance
● Individual alignment of the bearing position
d3 d3 x x

Material:
®
Housing: igumid G u Page 1190 Spherical ball material
Spherical ball: Variable u Page 993 Ball stud direction
Version A Version B Tube: Galvanised or stainless steel d2 d2 C C K series Double joints Inner Ø [mm] Tube material
B B Metric (A or B)

Options: Spherical ball material
®
Tube material Blank : iglidur W300
ER : Stainless steel (AISI 303) J : iglidur J
®
SR : Galvanised steel J4 : iglidur J4
®
R : iglidur R
®
EK : Stainless steel
(AISI 303)

Technical data Dimensions [mm]

Part No. Max. static Max. static Max. d1 d2 d3 X B C
tensile strain compressive force 190) pivot angle
Short-term Long-term Short-term Long-term
[N] [N] [N] [N] E10 min.
KDGM-05-A-ER 32) 220 110 1,250 625 45° 5 20 6 72 9 7.0
KDGM-06-A-ER-J 32) 220 110 1,250 625 40° 6 20 6 72 9 7.0
KDGM-08-A-ER-J 32) 500 250 1,500 750 35° 8 24 8 84 12 9.0
KDGM-10-A-ER-J 145) 32) 700 350 2,500 1,250 35° 10 30 10 96 14 10.5
KDGM-12-A-ER-J 32) 1,000 500 3,500 1,750 35° 12 34 12 108 16 12.0
32) Please add the required centre distance in mm
145) Size only available with stainless steel tube (ER)
190) The values refer to a length of 200mm

Order example, KDGM-05-A-SR, 100 : Double joint with 5mm inner diameter, version A, tube material made
ASEAN 09/2023 ASEAN 09/2023
®
of steel, spherical ball made of iglidur W300, centre distance 100mm
