igubal igubal
®
®
®
®
spherical igubal clip bearings | Product range igubal clip bearings | Product range spherical
bearings bearings
Ball stud clip bearings: ZCLM

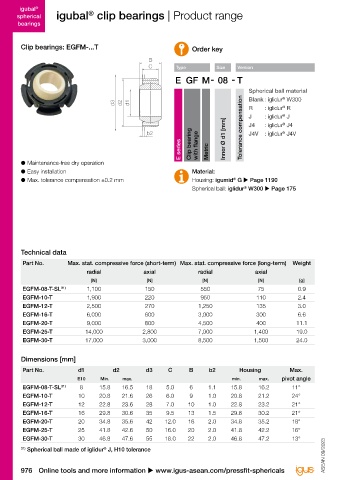

Clip bearings: EGFM-...T Order key Order key

B
C Type Size Version Type Size Options

Spherical ball material d3 d2 d1 Ball stud 19)
®
d3 d2 d1 Blank : iglidur W300 MS : Made of

galvanised steel
R
: iglidur R
®
ES
: Made of
J
: iglidur J
®
stainless steel
28)
®
b2 Inner Ø d1 [mm] Tolerance compensation J4 : iglidur J4 b2 Can be assembled on both sides Ball stud M6 [mm] Metal sheet thickness [mm] Blank : without ball stud
J4V : iglidur J4V
®
b1
E series Clip bearing with flange Metric Clip bearings Metric
● Maintenance-free dry operation ● Connection for rotating and pivoting movements
● Easy installation Material: ● Easy and quick assembly Material:
®
● Max. tolerance compensation ±0.2 mm Housing: igumid G u Page 1190 ● Absolute corrosion resistance Clip bearing: iglidur J u Page 163
®
Spherical ball: iglidur W300 u Page 175 ● Lubrication and maintenance-free
®
● Lightweight
● Chemical resistance
● Ball studs made from galvanised steel and stainless
steel
28)
u Accessories, page 1013
Technical data Technical data and dimensions [mm]

Part No. Max. stat. compressive force (short-term) Max. stat. compressive force (long-term) Weight Part No. Max. static d1 d2 d3 b1 b2 Weight
radial axial radial axial axial load
[N] [N] [N] [N] [g] Short-term Long-term
EGFM-08-T-SL 31) 1,100 150 550 75 0.9 [N] [N] [g]
EGFM-10-T 1,900 220 950 110 2.4 ZCLM-06-10-MS 70 35 10 12 13.5 12.5 10 0.6
EGFM-12-T 2,500 270 1,250 135 3.0 19) Ball stud with right-hand thread; left-hand thread upon request
EGFM-16-T 6,000 600 3,000 300 6.6 28) Stainless steel ball stud upon request
EGFM-20-T 9,000 800 4,500 400 11.1 More dimensions upon request
EGFM-25-T 14,000 2,800 7,000 1,400 19.0
EGFM-30-T 17,000 3,000 8,500 1,500 24.0 Assembly film
Fitting:
u www.igus-asean.com/zclm-film
Dimensions [mm]
Part No. d1 d2 d3 C B b2 Housing Max.
E10 Min. max. min. max. pivot angle
EGFM-08-T-SL 31) 8 15.8 16.5 18 5.0 6 1.1 15.8 16.2 11°
EGFM-10-T 10 20.8 21.6 26 6.0 9 1.0 20.8 21.2 24°
EGFM-12-T 12 22.8 23.6 28 7.0 10 1.0 22.8 23.2 21°
EGFM-16-T 16 29.8 30.6 35 9.5 13 1.5 29.8 30.2 21°
EGFM-20-T 20 34.8 35.6 42 12.0 16 2.0 34.8 35.2 18° Can be combined with accessories u From page 1011
EGFM-25-T 25 41.8 42.6 50 16.0 20 2.0 41.8 42.2 16°
EGFM-30-T 30 46.8 47.6 55 18.0 22 2.0 46.8 47.2 13°
ASEAN 09/2023 ASEAN 09/2023 GZRM-IG
31) Spherical ball made of iglidur J, H10 tolerance
®

976 Online tools and more information u www.igus-asean.com/pressfit-sphericals 3D CAD files, prices and delivery times online u www.igus-asean.com/pressfit-sphericals 977
