igubal igubal
®
®
®
®
spherical igubal clip bearings | Product range igubal clip bearings | Product range spherical
bearings bearings

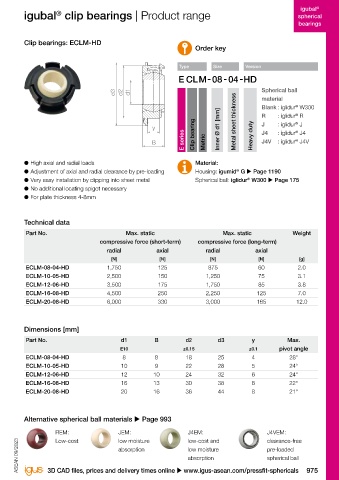

Clip bearings: ECLM Clip bearings: ECLM-HD
Order key Order key
b2
b1 Type Size Type Size Version

d3 d2 d1 Spherical ball
d3 d2 d1 material ® ®
Blank : iglidur W300
: iglidur R
R
®
: iglidur J4
J4
E series Metric B E series Metric J4V : iglidur J4V
®
y Clip bearing Inner Ø [mm] Metal sheet thickness y Clip bearing Inner Ø d1 [mm] Metal sheet thickness Heavy duty J : iglidur J
®
B
● Very easy installation by clipping into sheet metal Material: ● High axial and radial loads Material:
®
®
● No additional locating spigot necessary Housing: igumid G u Page 1190 ● Adjustment of axial and radial clearance by pre-loading Housing: igumid G u Page 1190
®
®
● Extremely small installation space: space-saving, Spherical ball: iglidur J u Page 163 ● Very easy installation by clipping into sheet metal Spherical ball: iglidur W300 u Page 175
thin-walled design ● No additional locating spigot necessary
Online service life calculation For plate thickness 4-8mm
u www.igus-asean.com/igubal-expert ●

Technical data Technical data
Part No. Max. static Max. static Weight Part No. Max. static Max. static Weight
compressive force (short-term) compressive force (long-term) compressive force (short-term) compressive force (long-term)
radial axial radial axial radial axial radial axial
[N] [N] [N] [N] [g] [N] [N] [N] [N] [g]
ECLM-05-02 700 25 350 12.5 0.5 ECLM-08-04-HD 1,750 125 875 60 2.0
ECLM-06-02 700 25 350 12.5 0.5 ECLM-10-05-HD 2,500 150 1,250 75 3.1
ECLM-08-02 1,000 25 500 12.5 0.5 ECLM-12-06-HD 3,500 175 1,750 85 3.8
ECLM-10-03 1,400 30 700 15.0 0.8 ECLM-16-08-HD 4,500 250 2,250 125 7.0
ECLM-12-03 1,800 35 900 17.5 0.8 ECLM-20-08-HD 6,000 330 3,000 165 12.0
ECLM-16-03 2,800 40 1,400 20.0 1.1

Dimensions [mm] Dimensions [mm]

Part No. d1 B d2 d3 y b1 b2 Max. Part No. d1 B d2 d3 y Max.
E10 ±0.2 Sheet metal ±0.1 pivot angle E10 ±0.15 ±0.1 pivot angle
thickness ECLM-08-04-HD 8 8 18 25 4 28°
ECLM-05-02 5 6 12 13 2 3.9 6.0 25° ECLM-10-05-HD 10 9 22 28 5 24°
ECLM-06-02 6 6 12 13 2 3.9 6.0 18° ECLM-12-06-HD 12 10 24 32 6 24°
ECLM-08-02 8 6 14 15 2 3.9 6.0 16° ECLM-16-08-HD 16 13 30 38 8 22°
ECLM-10-03 10 6 16 17 3 4.5 6.7 12° ECLM-20-08-HD 20 16 36 44 8 21°
ECLM-12-03 12 6 18 19 3 4.5 6.7 12°
ECLM-16-03 16 6 22 24 3 4.5 6.7 12°
Alternative spherical ball materials u Page 993

REM: JEM: J4EM: J4VEM:
clearance-free
Low-cost
low-cost and
low moisture
ASEAN 09/2023 ASEAN 09/2023 absorption low moisture pre-loaded
spherical ball
absorption
974 Online tools and more information u www.igus-asean.com/pressfit-sphericals 3D CAD files, prices and delivery times online u www.igus-asean.com/pressfit-sphericals 975
