Page 973 - IGUS Bearing

igubal igubal
®
®
®
®
spherical igubal spherical bearings | Product range igubal spherical bearings | Product range spherical
bearings bearings

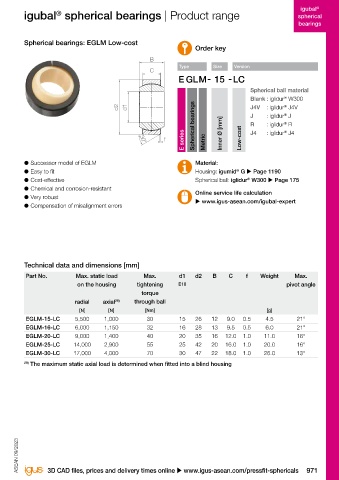

Spherical bearings: KGLM Spherical bearings: EGLM Low-cost
Order key Order key
B B
Type Size Type Size Version
C C

Spherical ball material
Blank : iglidur W300
®
d2 d1 d2 d1 J4V : iglidur J4V
®
: iglidur J
J
®
®
K series Metric E series Metric
: iglidur J4
J4
®
f Spherical bearings Inner Ø [mm] Spherical bearings Inner Ø [mm] R : iglidur R
30° 30° f Low-cost
● Predecessor model of KGLM-LC Material: ● Successor model of EGLM Material:
®
®
● Compensation of misalignment and edge loads Housing: igumid G u Page 1190 ● Easy to fit Housing: igumid G u Page 1190
®
®
● Corrosion-resistant Spherical ball: iglidur W300 u Page 175 ● Cost-effective Spherical ball: iglidur W300 u Page 175
● Vibration-dampening Imperial dimensions available ● Chemical and corrosion-resistant Online service life calculation
● Excellent vibration dampening u Page 1160 ● Very robust u www.igus-asean.com/igubal-expert
● Suitable for rotating, oscillating and axial movements ● Compensation of misalignment errors
Online service life calculation
u www.igus-asean.com/igubal-expert

Technical data and dimensions [mm] Technical data and dimensions [mm]

Part No. Max. static load Max. d1 d2 B C f Weight Max. Part No. Max. static load Max. d1 d2 B C f Weight Max.
on the housing tightening E10 pivot angle on the housing tightening E10 pivot angle
torque torque
radial axial 29) through ball radial axial 29) through ball
[N] [N] [Nm] [g] [N] [N] [Nm] [g]
KGLM-02 300 60 1 2 8 4 3.0 0.8 0.1 32° EGLM-15-LC 5,500 1,000 30 15 26 12 9.0 0.5 4.5 21°
KGLM-03 550 200 2 3 10 6 4.5 0.8 0.5 32° EGLM-16-LC 6,000 1,150 32 16 28 13 9.5 0.5 6.0 21°
KGLM-05 1,300 500 5 5 13 8 6.0 0.8 1.0 30° EGLM-20-LC 9,000 1,400 40 20 35 16 12.0 1.0 11.0 18°
KGLM-06 1,800 650 10 6 16 9 6.5 0.8 1.6 29° EGLM-25-LC 14,000 2,900 55 25 42 20 16.0 1.0 20.0 16°
KGLM-08 2,700 1,200 12 8 19 12 9.0 0.8 2.9 25° EGLM-30-LC 17,000 4,000 70 30 47 22 18.0 1.0 26.0 13°
KGLM-10 4,000 1,400 20 10 22 14 10.5 0.8 4.4 25° 29) The maximum static axial load is determined when fitted into a blind housing
KGLM-12 5,400 1,500 30 12 26 16 12.0 0.8 7.0 25°
KGLM-14 6,000 2,500 35 14 28 19 13.5 0.8 9.1 23°
KGLM-16 8,000 3,000 40 16 32 21 15.0 0.8 12.8 23°
KGLM-18 9,000 4,000 45 18 35 23 16.5 0.8 16.6 23°
KGLM-20 10,000 5,000 55 20 40 25 18.0 0.8 24.4 23°
KGLM-22 11,700 6,500 60 22 42 28 20.0 0.8 28.5 22°
KGLM-25 13,600 7,500 65 25 47 31 22.0 0.8 39.3 22°
KGLM-30 20,000 9,000 70 30 55 37 25.0 1.0 62.6 22°
29) The maximum static axial load is determined when fitted into a blind housing
ASEAN 09/2023 ASEAN 09/2023

970 Online tools and more information u www.igus-asean.com/pressfit-sphericals 3D CAD files, prices and delivery times online u www.igus-asean.com/pressfit-sphericals 971
