igubal igubal
®
®
®
®
spherical igubal spherical bearings | Technical data igubal spherical bearings | Product overview spherical
bearings bearings

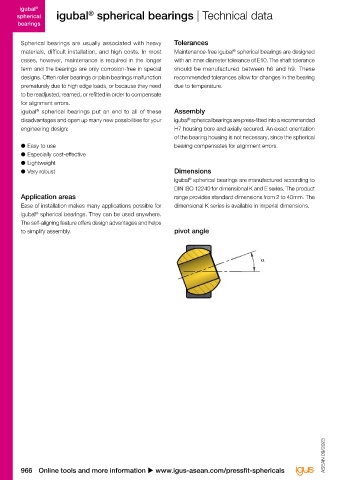

igubal spherical bearings
®
Spherical bearings are usually associated with heavy Tolerances
materials, difficult installation, and high costs. In most Maintenance-free igubal spherical bearings are designed
®
cases, however, maintenance is required in the longer with an inner diameter tolerance of E10. The shaft tolerance
term and the bearings are only corrosion-free in special should be manufactured between h6 and h9. These
designs. Often roller bearings or plain bearings malfunction recommended tolerances allow for changes in the bearing
prematurely due to high edge loads, or because they need due to temperature.
to be readjusted, reamed, or refitted in order to compensate Easy to fit, cost-effective, For extremely narrow Standard, Cost-effective,
for alignment errors. selectable spherical ball installation space easy to fit selectable spherical ball
igubal spherical bearings put an end to all of these Assembly material material
®
disadvantages and open up many new possibilities for your igubal spherical bearings are press-fitted into a recommended K series K series K series E series
®
engineering design: H7 housing bore and axially secured. An exact orientation u Page 968 u Page 969 u Page 970 u Page 971
of the bearing housing is not necessary, since the spherical
● Easy to use bearing compensates for alignment errors. igubal self-aligning clip bearings
®
● Especially cost-effective
● Lightweight
● Very robust Dimensions
igubal spherical bearings are manufactured according to
®
DIN ISO 12240 for dimensional K and E series. The product
Application areas range provides standard dimensions from 2 to 40mm. The
Ease of installation makes many applications possible for dimensional K series is available in imperial dimensions. Space-saving Suitable for food contact Simply snap For high axial and
igubal spherical bearings. They can be used anywhere. into sheet metal radial loads, selectable
®
The self-aligning feature offers design advantages and helps spherical ball material
to simplify assembly. pivot angle E series E series E series E series
u Page 972 u Page 973 u Page 974 u Page 975

α igubal self-aligning clip bearings igubal double joints and coupling joints
®
®

For tolerance Simply snap-in Robust plastic, selectable Selectable materials,
compensation, selectable into sheet metal, can be spherical ball material individual dimensions and
spherical ball material assembled on both sides alignment
E series E series
u Page 976 u Page 977 u Page 978 u Page 982

igubal double joints and coupling joints
®

New

Selectable materials, Removable, selectable Crimped coupling joints, Crimped coupling joints
individual dimensions and materials, individual particularly resistant to dirt with clevis joints
alignment dimensions and alignment

ASEAN 09/2023 ASEAN 09/2023 u Page 980 u Page 984 u Page 985 u Page 986

966 Online tools and more information u www.igus-asean.com/pressfit-sphericals 3D CAD files, prices and delivery times online u www.igus-asean.com/pressfit-sphericals 967
