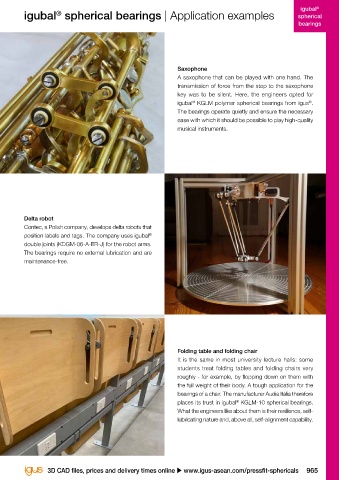

spherical igubal spherical bearings igubal spherical bearings | Application examples spherical
bearings bearings
The use of spherical bearings is usually associated with heavy materials, difficult installation, and high
costs. Most of the time, maintenance is still necessary long-term, and the bearings are only corrosion-
resistant in special designs. igubal spherical bearings put an end to all of these disadvantages: they
®
are easy to fit, cost-effective, lightweight and robust. Saxophone
A saxophone that can be played with one hand. The
transmission of force from the stop to the saxophone
key was to be silent. Here, the engineers opted for
Easy to fit
igubal KGLM polymer spherical bearings from igus .
®
®
When do I take them? The bearings operate quietly and ensure the necessary
● For high axial and radial loads ease with which it should be possible to play high-quality
● For the simplest installation musical instruments.
Cost-effective ● When extremely small installation spaces are
available
● When chemical resistance is required
● If a cost-effective option is requested

Chemical resistance ● When dirt-resistant bearings are required
● To adjust misalignment

When do I not take them?
Lightweight Delta robot
● When temperatures are higher than +80°C Contec, a Polish company, develops delta robots that
● For dimensions above 30mm position labels and tags. The company uses igubal
®
● If rotation speeds of more than 0.5m/s are to
be achieved double joints (KDGM-06-A-ER-J) for the robot arms.
Very robust The bearings require no external lubrication and are
maintenance-free.

Available from stock
Detailed information about delivery time online.

Price breaks online
No minimum order value. No minimum order quantity Folding table and folding chair
It is the same in most university lecture halls: some
Max. +80°C students treat folding tables and folding chairs very
min. -30°C roughly - for example, by flopping down on them with
the full weight of their body. A tough application for the
13 types bearings of a chair. The manufacturer Audia Italia therefore
Ø 2 - 40mm places its trust in igubal KGLM-10 spherical bearings.
®
What the engineers like about them is their resilience, self-
Imperial dimensions available lubricating nature and, above all, self-alignment capability.
u From page 1160

Online product finder
u www.igus-asean.com/igubal-finder ASEAN 09/2023
