igubal igubal
®
®
®
®
fixed flange igubal fixed flange bearings | Product range New igubal fixed flange bearings | Product range New fixed flange
bearings bearings

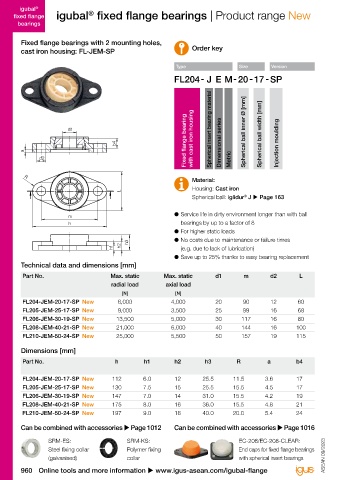

Fixed flange bearings with 2 mounting holes, Fixed flange bearings with 4 mounting holes,
cast iron housing: FL-JEM-SP Order key cast iron housing: F-JEM-SP Order key

Type Size Version Type Size Version

Fixed flange bearing with cast iron housing Spherical ball width [mm] Fixed flange bearing with cast iron housing Spherical ball width [mm]

d1 Spherical insert bearing material Spherical ball inner Ø [mm] Spherical insert bearing material Spherical ball inner Ø [mm]

b4 Dimensional series Injection moulding Dimensional series Injection moulding
a Ag A1 b4
d2 Metric h1 a d1 Metric

R
Material: N Material:
Housing: Cast iron Housing: Cast iron
L
®
Spherical ball: iglidur J u Page 163 Spherical ball: iglidur J u Page 163
®
m ● Service life in dirty environment longer than with ball ● Service life in dirty environment longer than with ball
h bearings by up to a factor of 8 h m bearings by up to a factor of 8
● For higher static loads ● For higher static loads
h3 ● No costs due to maintenance or failure times ● No costs due to maintenance or failure times
h1 h2 (e.g. due to lack of lubrication) R (e.g. due to lack of lubrication)
● Save up to 25% thanks to easy bearing replacement ● Save up to 25% thanks to easy bearing replacement
Technical data and dimensions [mm] Technical data and dimensions [mm]

Part No. Max. static Max. static d1 m d2 L Part No. Max. static Max. static axial d1 a h m
radial load axial load radial load load
[N] [N] [N] [N]
FL204-JEM-20-17-SP New 8,000 4,000 20 90 12 60 F204-JEM-20-17-SP New 8,000 4,000 20 3.6 86 64
FL205-JEM-25-17-SP New 9,000 3,500 25 99 16 68 F205-JEM-25-17-SP New 9,000 3,500 25 4.2 95 70
FL206-JEM-30-19-SP New 13,500 5,000 30 117 16 80 F206-JEM-30-19-SP New 13,500 5,000 30 4.2 108 83
FL208-JEM-40-21-SP New 21,000 6,000 40 144 16 100 F208-JEM-40-21-SP New 21,000 6,000 40 4.8 130 102
FL210-JEM-50-24-SP New 25,000 5,500 50 157 19 115 F210-JEM-50-24-SP New 25,000 5,500 50 5.4 143 111

Dimensions [mm] Dimensions [mm]
Part No. h h1 h2 h3 R a b4 Part No. A1 Ag N b4 h1 R

FL204-JEM-20-17-SP New 112 6.0 12 25.5 11.5 3.6 17 F204-JEM-20-17-SP New 12 25.5 12 17 9.6 11.0
FL205-JEM-25-17-SP New 130 7.5 15 25.5 15.5 4.5 17 F205-JEM-25-17-SP New 14 27.0 12 17 11.2 12.5
FL206-JEM-30-19-SP New 147 7.0 14 31.0 15.5 4.2 19 F206-JEM-30-19-SP New 14 31.0 12 19 11.2 12.5
FL208-JEM-40-21-SP New 175 8.0 16 36.0 15.5 4.8 21 F208-JEM-40-21-SP New 16 36.0 16 21 12.8 14.0
FL210-JEM-50-24-SP New 197 9.0 18 40.0 20.0 5.4 24 F210-JEM-50-24-SP New 18 40.0 16 24 14.4 16.0

Can be combined with accessories u Page 1012 Can be combined with accessories u Page 1016 Can be combined with accessories u Page 1012 Can be combined with accessories u Page 1016

SRM-ES: SRM-KS: EC-208/EC-208-CLEAR: SRM-ES: SRM-KS: EC-208/EC-208-CLEAR:
Steel fixing collar Polymer fixing End caps for fixed flange bearings Steel fixing collar Polymer fixing End caps for fixed flange bearings
(galvanised) collar with spherical insert bearings ASEAN 09/2023 ASEAN 09/2023 (galvanised) collar with spherical insert bearings
960 Online tools and more information u www.igus-asean.com/igubal-flange 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-flange 961
