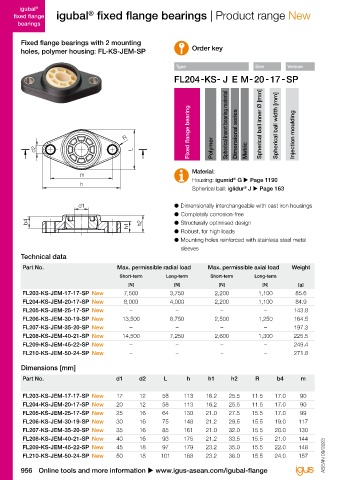

Page 958 - IGUS Bearing

igubal igubal
®
®
®
®
fixed flange igubal fixed flange bearings | Product range New igubal fixed flange bearings | Product range New fixed flange
bearings bearings
Fixed flange bearings with 2 mounting Fixed flange bearings with 4 mounting
holes, polymer housing: FL-KS-JEM-SP Order key holes, polymer housing: F-KS-JEM-SP Order key

Type Size Version Type Size Version

Fixed flange bearing Spherical insert bearing material Spherical ball inner Ø [mm] Spherical ball width [mm] A A1 Ag Fixed flange bearing Spherical insert bearing material Spherical ball inner Ø [mm] Spherical ball width [mm]

R Dimensional series Injection moulding h h1 Dimensional series Injection moulding

d2 L Polymer Metric m Polymer Metric

Material: Material:
m
®
®
Housing: igumid G u Page 1190 Housing: igumid G u Page 1190
h
®
Spherical ball: iglidur J u Page 163 d1 Spherical ball: iglidur J u Page 163
®
d1 ● Dimensionally interchangeable with cast iron housings ● Dimensionally interchangeable with cast iron housings
● Completely corrosion-free N ● Completely corrosion-free
b4 h2 ● Structurally optimised design R ● Structurally optimised design
h1
● Robust, for high loads A b4 ● Robust, for high loads
● Mounting holes reinforced with stainless steel metal ● Mounting holes reinforced with stainless steel metal
sleeves sleeves
Technical data Technical data

Part No. Max. permissible radial load Max. permissible axial load Weight Part No. Max. permissible radial load Max. permissible axial load Weight
Short-term Long-term Short-term Long-term Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [g] [N] [N] [N] [N] [g]
FL203-KS-JEM-17-17-SP New 7,500 3,750 2,200 1,100 85.6 F203-KS-JEM-17-17-SP New 7,500 3,750 1,800 900 128.9
FL204-KS-JEM-20-17-SP New 8,000 4,000 2,200 1,100 84.9 F204-KS-JEM-20-17-SP New 8,000 4,000 1,800 900 128.2
FL205-KS-JEM-25-17-SP New – – – – 143.8 F205-KS-JEM-25-17-SP New – – – – 147.1
FL206-KS-JEM-30-19-SP New 13,500 6,750 2,500 1,250 164.5 F206-KS-JEM-30-19-SP New 12,500 6,250 1,400 700 188.3
FL207-KS-JEM-35-20-SP New – – – – 197.3 F207-KS-JEM-35-20-SP New – – – – 269.0
FL208-KS-JEM-40-21-SP New 14,500 7,250 2,600 1,300 225.5 F208-KS-JEM-40-21-SP New 15,400 7,700 2,550 1,275 299.5
FL209-KS-JEM-45-22-SP New – – – – 249.4 F209-KS-JEM-45-22-SP New – – – – 334.3
FL210-KS-JEM-50-24-SP New – – – – 271.8 F210-KS-JEM-50-24-SP New – – – – 364.3

Dimensions [mm] Dimensions [mm]
Part No. d1 d2 L h h1 h2 R b4 m Part No. d1 h m A1 Ag N b4 h1 R

FL203-KS-JEM-17-17-SP New 17 12 58 113 16.2 25.5 11.5 17.0 90 F203-KS-JEM-17-17-SP New 17 86 64 16.2 25 12 17 15 11.0
FL204-KS-JEM-20-17-SP New 20 12 58 113 16.2 25.5 11.5 17.0 90 F204-KS-JEM-20-17-SP New 20 86 64 16.2 25 12 17 15 11.0
FL205-KS-JEM-25-17-SP New 25 16 64 130 21.0 27.5 15.5 17.0 99 F205-KS-JEM-25-17-SP New 25 95 70 16.2 26 12 17 16 12.5
FL206-KS-JEM-30-19-SP New 30 16 75 148 21.2 29.5 15.5 19.0 117 F206-KS-JEM-30-19-SP New 30 108 83 16.2 29 12 19 18 12.5
FL207-KS-JEM-35-20-SP New 35 16 85 161 21.0 32.0 15.5 20.0 130 F207-KS-JEM-35-20-SP New 35 120 92 19.2 31 14 20 19 14.0
FL208-KS-JEM-40-21-SP New 40 16 93 175 21.2 33.5 15.5 21.0 144 F208-KS-JEM-40-21-SP New 40 130 102 21.2 33 16 21 21 14.0
FL209-KS-JEM-45-22-SP New 45 18 97 179 23.2 35.0 15.5 22.0 148 F209-KS-JEM-45-22-SP New 45 135 105 21.2 35 16 22 22 15.0
FL210-KS-JEM-50-24-SP New 50 18 101 188 23.2 36.0 15.5 24.0 157 ASEAN 09/2023 ASEAN 09/2023 F210-KS-JEM-50-24-SP New 50 141 111 21.2 36 16 24 22 15.0

956 Online tools and more information u www.igus-asean.com/igubal-flange 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-flange 957
