igubal igubal
®
®
®
®
fixed flange igubal fixed flange bearings | Product range igubal fixed flange bearings | Product range fixed flange
bearings bearings

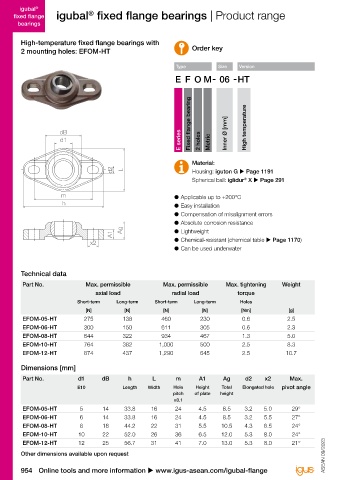

High-temperature fixed flange bearings with Fixed flange bearings for contact with food:
2 mounting holes: EFOM-HT Order key EFOM-FC Order key

Type Size Version Type Size Version

Fixed flange bearing Fixed flange bearing

dB Inner Ø [mm] High temperature dB Inner Ø [mm] Suitable for food
d1 E series 2 holes Metric d1 E series 2 holes Metric contact

Material: Material:
d2 L Housing: iguton G u Page 1191 d2 L Housing: igumid FC u Page 1191
®
Spherical ball: iglidur X u Page 291 Spherical ball: iglidur A181 u Page 401
®
®
iglidur FC180 u upon request
®
m ● Applicable up to +200°C m
h ● Easy installation h ● Complies with FDA and EU 10/2011
● Compensation of misalignment errors ● Lubrication and maintenance-free
● Absolute corrosion resistance ● Visually and magnetically detectable
Ag ● Lightweight Ag ● In industry-standard blue
A1 A1
x2 ● Chemical-resistant (chemical table u Page 1170) x2 ● Corrosion and media-resistant
● Can be used underwater ● Vibration-dampening
● Cost-effective

Technical data Technical data

Part No. Max. permissible Max. permissible Max. tightening Weight Part No. Max. permissible Max. permissible Max. tightening Weight
axial load radial load torque axial load radial load torque
Short-term Long-term Short-term Long-term Holes Short-term Long-term Short-term Holes
[N] [N] [N] [N] [Nm] [g] [N] [N] [N] [Nm] [g]
EFOM-05-HT 275 138 460 230 0.6 2.5 EFOM-08-FC New 600 300 1,100 1.3 4.4
EFOM-06-HT 300 150 611 305 0.6 2.3 EFOM-10-FC New 700 350 2,000 2.5 7.3
EFOM-08-HT 644 322 934 467 1.3 5.0 EFOM-20-FC 1,500 750 5,500 10.0 35.5
EFOM-10-HT 764 382 1,000 500 2.5 8.3
EFOM-12-HT 874 437 1,290 645 2.5 10.7

Dimensions [mm] Dimensions [mm]
Part No. d1 dB h L m A1 Ag d2 x2 Max. Part No. d1 dB h L m A1 Ag d2 x2 Max.
E10 Length Width Hole Height Total Elongated hole pivot angle E10 Length Width Hole Height Total Elongated hole pivot angle
pitch of plate height pitch of plate height
±0.1 ±0.1
EFOM-05-HT 5 14 33.8 16 24 4.5 8.5 3.2 5.0 29° EFOM-08-FC New 8 18.0 44.2 22.0 31.0 5.5 10.5 4.3 6.5 25°
EFOM-06-HT 6 14 33.8 16 24 4.5 8.5 3.2 5.5 27° EFOM-10-FC New 10 22.0 52.0 26.0 36.0 6.5 12.0 5.3 8.0 25°
EFOM-08-HT 8 18 44.2 22 31 5.5 10.5 4.3 6.5 24° EFOM-20-FC 20 40.0 89.0 47.0 65.0 11.0 20.0 8.4 12.5 19°
EFOM-10-HT 10 22 52.0 26 36 6.5 12.0 5.3 8.0 24° Other dimensions available upon request
EFOM-12-HT 12 25 56.7 31 41 7.0 13.0 5.3 8.0 21°

Other dimensions available upon request ASEAN 09/2023 ASEAN 09/2023

954 Online tools and more information u www.igus-asean.com/igubal-flange 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-flange 955
