Page 954 - IGUS Bearing

igubal igubal
®
®
®
®
fixed flange igubal fixed flange bearings | Product range igubal fixed flange bearings | Product range fixed flange
bearings bearings

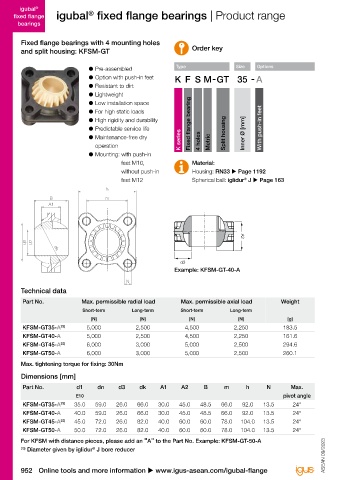

Fixed flange bearings with 4 mounting holes High-temperature fixed flange bearings with
and split housing: KFSM-GT Order key 4 mounting holes: EFSM-HT Order key

● Pre-assembled Type Size Options Type Size Version
● Option with push-in feet
● Resistant to dirt
● Lightweight
● Low installation space
● For high static loads
● High rigidity and durability Fixed flange bearing
● Predictable service life With push-in feet Fixed flange bearing High temperature
● Maintenance-free dry K series 4 holes Split housing Inner Ø [mm] Inner Ø [mm]
operation Metric E series 4 holes Metric
● Mounting: with push-in N
feet M10, Material:
without push-in Housing: RN33 u Page 1192 Material:
h m Housing: iguton G u Page 1191
feet M12 Spherical ball: iglidur J u Page 163
®
Spherical ball: iglidur X u Page 291
®
h
B m ● Applicable up to +200°C
A1 ● Easy installation
● Compensation of misalignment errors
● Absolute corrosion resistance
Ag A1 ● Lightweight

● Chemical-resistant (chemical table u Page 1170)
A2
d1 ● Can be used underwater
dn
d1
dk
dB
d3
Example: KFSM-GT-40-A
N Technical data
Technical data Part No. Max. permissible Max. permissible Max. Weight
Part No. Max. permissible radial load Max. permissible axial load Weight axial load radial load tightening torque
Short-term Long-term Short-term Long-term Short-term Long-term Short-term Long-term Holes
[N] [N] [N] [N] [g] [N] [N] [N] [N] [Nm] [g]
KFSM-GT35-A 23) 5,000 2,500 4,500 2,250 183.5 EFSM-05-HT 275 138 440 220 0.6 3.5
KFSM-GT40-A 5,000 2,500 4,500 2,250 161.6 EFSM-06-HT 339 170 523 262 0.6 3.3
KFSM-GT45-A 23) 6,000 3,000 5,000 2,500 294.6 EFSM-08-HT 412 206 713 356 1.3 7.1
KFSM-GT50-A 6,000 3,000 5,000 2,500 260.1 EFSM-10-HT 864 432 1,202 601 2.5 11.2
Max. tightening torque for fixing: 30Nm EFSM-12-HT 1,024 512 1,347 674 2.5 13.3

Dimensions [mm] Dimensions [mm]
Part No. d1 dn d3 dk A1 A2 B m h N Max. Part No. d1 dB h m A1 Ag N Max.
E10 pivot angle E10 Width Hole pitch Height Total height Bore pivot angle
KFSM-GT35-A 23) 35.0 59.0 26.0 66.0 30.0 45.0 48.5 66.0 92.0 13.5 24° ±0.1 of plate d
KFSM-GT40-A 40.0 59.0 26.0 66.0 30.0 45.0 48.5 66.0 92.0 13.5 24° EFSM-05-HT 5 14 25 17 4.5 8.5 3.2 29°
KFSM-GT45-A 23) 45.0 72.0 26.0 82.0 40.0 60.0 60.0 78.0 104.0 13.5 24° EFSM-06-HT 6 14 25 17 4.5 8.5 3.2 25°
KFSM-GT50-A 50.0 72.0 26.0 82.0 40.0 60.0 60.0 78.0 104.0 13.5 24° EFSM-08-HT 8 18 33 22 5.5 10.5 4.3 25°
For KFSM with distance pieces, please add an "A" to the Part No. Example: KFSM-GT-50-A EFSM-10-HT 10 22 38 26 6.5 12.0 5.3 25°
12
25
EFSM-12-HT
23) Diameter given by iglidur J bore reducer ASEAN 09/2023 ASEAN 09/2023 Other dimensions available upon request 40 28 7.0 13.0 5.3 21°
®
952 Online tools and more information u www.igus-asean.com/igubal-flange 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-flange 953
