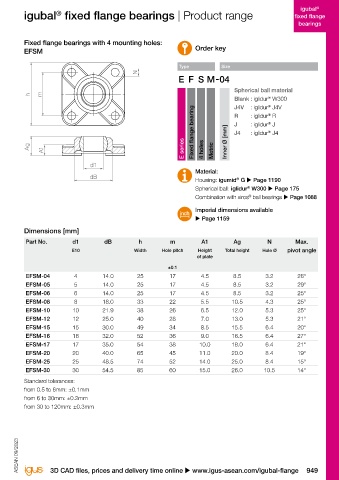

Page 951 - IGUS Bearing

igubal igubal
®
®
®
®
fixed flange igubal fixed flange bearings | Product range igubal fixed flange bearings | Product range fixed flange
bearings bearings
Fixed flange bearings with 4 mounting holes: Fixed flange bearings with 4 mounting holes:
EFSM EFSM Order key

®
● iglidur W300 extremely wear-resistant spherical ball N Type Size
● Easy installation
● Compensation of misalignment errors Spherical ball material
● Absolute corrosion resistance h m Blank : iglidur W300
®
● Lightweight J4V : iglidur J4V
®
● Maintenance-free dry operation R : iglidur R
®
®
J4
: iglidur J4
Online service life calculation Fixed flange bearing J : iglidur J
®
u www.igus-asean.com/igubal-expert Inner Ø [mm]
Ag A1 E series 4 holes Metric
d1
Material:
dB
®
Housing: igumid G u Page 1190
Spherical ball: iglidur W300 u Page 175
®
Combination with xiros ball bearings u Page 1088
®
Imperial dimensions available
u Page 1159

Technical data Dimensions [mm]
Part No. Max. permissible Max. permissible Max. tightening Weight Part No. d1 dB h m A1 Ag N Max.
axial load radial load torque E10 Width Hole pitch Height Total height Hole Ø pivot angle
Short-term Long-term Short-term Long-term Holes of plate
[N] [N] [N] [N] [Nm] [g] ±0.1
EFSM-04 200 100 1,000 500 0.6 2.6 EFSM-04 4 14.0 25 17 4.5 8.5 3.2 28°
EFSM-05 300 150 1,000 500 0.6 2.7 EFSM-05 5 14.0 25 17 4.5 8.5 3.2 29°
EFSM-06 300 150 1,000 500 0.6 2.8 EFSM-06 6 14.0 25 17 4.5 8.5 3.2 25°
EFSM-08 450 225 1,400 700 1.3 5.9 EFSM-08 8 18.0 33 22 5.5 10.5 4.3 25°
EFSM-10 700 350 2,000 1,000 2.5 9.1 EFSM-10 10 21.9 38 26 6.5 12.0 5.3 25°
EFSM-12 850 425 2,500 1,250 2.5 11.0 EFSM-12 12 25.0 40 28 7.0 13.0 5.3 21°
EFSM-15 1,100 550 3,000 1,500 4.5 20.2 EFSM-15 15 30.0 49 34 8.5 15.5 6.4 20°
EFSM-16 1,350 675 3,200 1,600 4.5 23.3 EFSM-16 16 32.0 52 36 9.0 16.5 6.4 27°
EFSM-17 1,600 800 3,400 1,700 4.5 27.9 EFSM-17 17 35.0 54 38 10.0 18.0 6.4 21°
EFSM-20 2,000 1,000 4,000 2,000 10.5 45.0 EFSM-20 20 40.0 65 45 11.0 20.0 8.4 19°
EFSM-25 2,400 1,200 5,600 2,800 10.5 76.0 EFSM-25 25 48.5 74 52 14.0 25.0 8.4 15°
EFSM-30 2,800 1,400 6,000 3,000 21.5 100.7 EFSM-30 30 54.5 85 60 15.0 26.0 10.5 14°

Standard tolerances:
from 0.5 to 6mm: ±0.1mm
from 6 to 30mm: ±0.2mm
from 30 to 120mm: ±0.3mm
Alternative spherical ball materials u Page 993

J4VEM: JEM: REM: J4EM:
Clearance-free, low moisture Low-cost Low-cost and low
ASEAN 09/2023 ASEAN 09/2023
pre-loaded absorption moisture absorption

948 Online tools and more information u www.igus-asean.com/igubal-flange 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-flange 949
