igubal igubal
®
®
®
®

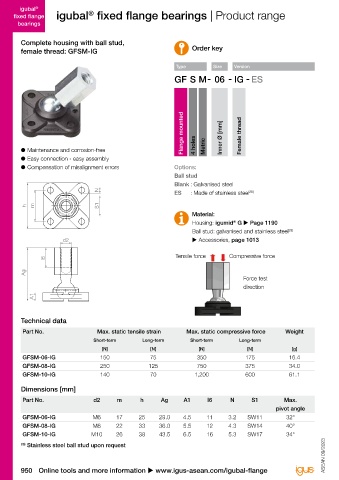

fixed flange igubal fixed flange bearings | Product range igubal fixed flange bearings | Product range fixed flange
bearings bearings
Complete housing with ball stud, Complete housing with ball stud,
female thread: GFSM-IG Order key male thread: GFSM-AG Order key

Type Size Version Type Size Version

Flange mounted Inner Ø [mm] Female thread Flange mounted Inner Ø [mm] Male thread

● Maintenance and corrosion-free 4 holes Metric ● Maintenance and corrosion-free 4 holes Metric
● Easy connection - easy assembly ● Easy connection - easy assembly
● Compensation of misalignment errors Options: ● Compensation of misalignment errors Options:
Ball stud Ball stud 19)
Blank : Galvanised steel Blank : Galvanised steel
N ES : Made of stainless steel 28) N N PZ : Made of plastic

h m S1 h h m m S1 S1 ES : Made of stainless steel 28)
Material: Material:
®
®
Housing: igumid G u Page 1190 Housing: igumid G u Page 1190
Ball stud: galvanised and stainless steel 28) Ball studs: plastic, galvanised steel and stainless
d2 u Accessories, page 1013 d2 steel u Accessories, page 1014
28)
d2
Tensile force Compressive force Tensile force Compressive force
I6 I6 I6

Ag Ag Ag
Force test Force test
direction direction
A1 A1 A1

Technical data Technical data

Part No. Max. static tensile strain Max. static compressive force Weight Part No. Max. static tensile strain Max. static compressive force Weight
Short-term Long-term Short-term Long-term Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [g] [N] [N] [N] [N] [g]
GFSM-06-IG 150 75 350 175 16.4 GFSM-06-AG 150 75 350 175 10.6
GFSM-08-IG 250 125 750 375 34.0 GFSM-08-AG 250 125 750 375 23.1
GFSM-10-IG 140 70 1,200 600 61.1 GFSM-10-AG 140 70 1,200 600 41.2

Dimensions [mm] Dimensions [mm]

Part No. d2 m h Ag A1 I6 N S1 Max. Part No. d2 m h Ag A1 I6 N S1 Max.
pivot angle pivot angle
GFSM-06-IG M6 17 25 29.0 4.5 11 3.2 SW11 32° GFSM-06-AG M6 17 25 29.0 4.5 10.5 3.2 SW8 32°
GFSM-08-IG M8 22 33 36.0 5.5 12 4.3 SW14 40° GFSM-08-AG M8 22 33 36.0 5.5 13.5 4.3 SW11 34°
GFSM-10-IG M10 26 38 43.5 6.5 16 5.3 SW17 34° GFSM-10-AG M10 26 38 43.5 6.5 16.0 5.3 SW13 34°
ASEAN 09/2023 ASEAN 09/2023 28) Stainless steel ball stud upon request
28) Stainless steel ball stud upon request 19) Ball stud with right-hand thread; left-hand thread upon request

950 Online tools and more information u www.igus-asean.com/igubal-flange 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-flange 951
