igubal igubal
®
®
®
®

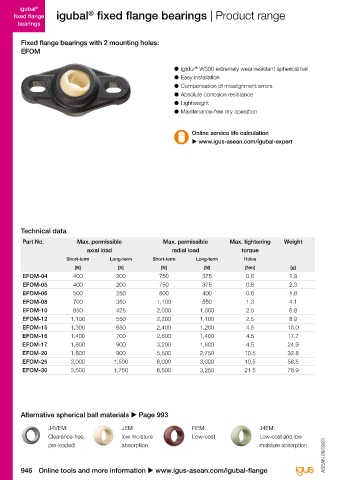

fixed flange igubal fixed flange bearings | Product range igubal fixed flange bearings | Product range fixed flange
bearings bearings
Fixed flange bearings with 2 mounting holes: Fixed flange bearings with 2 mounting holes:
EFOM EFOM Order key

®
● iglidur W300 extremely wear-resistant spherical ball dB Type Size
d1
● Easy installation
● Compensation of misalignment errors Spherical ball material
● Absolute corrosion resistance Blank : iglidur W300
®
● Lightweight d2 L J4V : iglidur J4V
®
● Maintenance-free dry operation R : iglidur R
®
®
m J : iglidur J
Online service life calculation h Fixed flange bearing J4 : iglidur J4
®
E series 2 holes Metric
u www.igus-asean.com/igubal-expert Inner Ø [mm]

Ag
A1 Material:
x2
®
Housing: igumid G u Page 1190
Spherical ball: iglidur W300 u Page 175
®
®
Combination with xiros ball bearings u Page 1089
Imperial dimensions available
u Page 1158

Technical data Dimensions [mm]
Part No. Max. permissible Max. permissible Max. tightening Weight Part No. d1 dB h L m A1 Ag d2 x2 Max.
axial load radial load torque E10 Length Width Hole Height Total height Elongated hole pivot angle
Short-term Long-term Short-term Long-term Holes pitch of plate
[N] [N] [N] [N] [Nm] [g] ±0.1 +1.0
EFOM-04 400 200 750 375 0.6 1.9 EFOM-04 4 14.0 33.8 16.0 24.0 4.5 8.0 3.2 5.0 28°
EFOM-05 400 200 750 375 0.6 2.3 EFOM-05 5 14.0 33.8 16.0 24.0 4.5 8.5 3.2 5.0 29°
EFOM-06 500 250 800 400 0.6 1.8 EFOM-06 6 14.0 33.8 16.0 24.0 4.5 8.5 3.2 5.0 25°
EFOM-08 700 350 1,100 550 1.3 4.1 EFOM-08 8 18.0 44.2 22.0 31.0 5.5 10.5 4.3 6.5 25°
EFOM-10 850 425 2,000 1,000 2.5 6.8 EFOM-10 10 22.0 52.0 26.0 36.0 6.5 12.0 5.3 8.0 25°
EFOM-12 1,100 550 2,200 1,100 2.5 8.9 EFOM-12 12 25.0 56.7 31.0 41.0 7.0 13.0 5.3 8.0 21°
EFOM-15 1,300 650 2,400 1,200 4.5 15.0 EFOM-15 15 29.8 68.6 36.0 50.0 8.5 15.5 6.4 10.0 20°
EFOM-16 1,400 700 2,800 1,400 4.5 17.7 EFOM-16 16 32.0 72.6 38.0 53.0 10.0 17.5 6.4 10.1 27°
EFOM-17 1,800 900 3,200 1,600 4.5 24.9 EFOM-17 17 34.8 74.6 41.0 55.0 10.0 18.0 6.4 10.2 21°
EFOM-20 1,800 900 5,500 2,750 10.5 32.8 EFOM-20 20 40.0 89.0 47.0 65.0 11.0 20.0 8.4 12.5 19°
EFOM-25 3,000 1,500 6,000 3,000 10.5 58.5 EFOM-25 25 48.5 101.0 58.5 75.0 14.0 25.0 8.4 12.6 15°
EFOM-30 3,500 1,750 6,500 3,250 21.5 78.9 EFOM-30 30 55.0 118.0 65.0 87.5 15.0 26.0 10.5 16.0 14°

Standard tolerances:
from 0.5 to 6mm: ±0.1mm
from 6 to 30mm: ±0.2mm
from 30 to 120mm: ±0.3mm
Alternative spherical ball materials u Page 993

J4VEM: JEM: REM: J4EM:
Clearance-free, low moisture Low-cost Low-cost and low
ASEAN 09/2023 ASEAN 09/2023
pre-loaded absorption moisture absorption

946 Online tools and more information u www.igus-asean.com/igubal-flange 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-flange 947
