igubal igubal
®
®
®
®

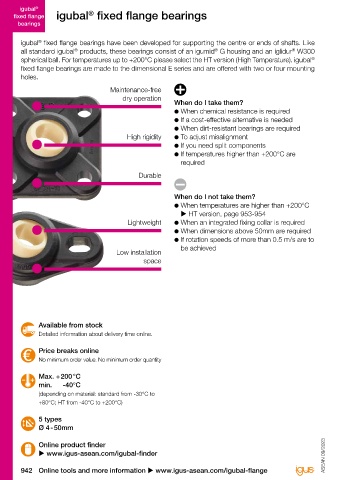

fixed flange igubal fixed flange bearings igubal fixed flange bearings | Application examples fixed flange
bearings bearings
igubal fixed flange bearings have been developed for supporting the centre or ends of shafts. Like
®
all standard igubal products, these bearings consist of an igumid G housing and an iglidur W300
®
®
®
spherical ball. For temperatures up to +200°C please select the HT version (High Temperature). igubal
®
fixed flange bearings are made to the dimensional E series and are offered with two or four mounting Powder coating system
holes. The Indian company Brakes India manufactures a powder
coating system that works with spray booths and drying
Maintenance-free ovens. In the past, the paint powder was deposited in
dry operation the difficult-to-reach rolling bearings of the system and
When do I take them? resulted in a lot of maintenance work having to be done.
● When chemical resistance is required The engineers solved the problem by replacing the metal
● If a cost-effective alternative is needed rolling bearings with lubrication-free polymer bearings
● When dirt-resistant bearings are required ®
High rigidity ● To adjust misalignment from igus .
● If you need split components
● If temperatures higher than +200°C are
required

Durable

When do I not take them? Printing machine
● When temperatures are higher than +200°C If manual printing machines for the gravure printing
u HT version, page 953-954 process are not used for a long period of time, the roller
Lightweight ● When an integrated fixing collar is required bearings will rust in humid environments. Rotating and
● When dimensions above 50mm are required sliding movements are blocked and uniform printing is
● If rotation speeds of more than 0.5 m/s are to almost impossible. That is why the manufacturer Ravi
be achieved Engineering Works from India switched from metal
Low installation
space bearings to spherical bearings and plain bearings
made from high-performance plastic from igus . The
®
bearings now operate reliably in damp environments
without a single drop of lubricant.

Available from stock
Detailed information about delivery time online.

Price breaks online Railway barrier
No minimum order value. No minimum order quantity The company Bombardier Transportation from Poland
is continuously looking for components that function
Max. + 200 °C reliably even under the most difficult environmental
min. -40°C conditions - in cold, hot and dusty environments alike.
(depending on material: standard from -30°C to For the 90-degree pivoting movement of the barrier, the
+80°C; HT from -40°C to +200°C) engineers use weather-resistant and maintenance-free
igubal polymer bearings (JEM-50-24-SP) and iglidur X
®
®
5 types linear guide lead screws.
Ø 4 - 50mm

Online product finder
u www.igus-asean.com/igubal-finder ASEAN 09/2023
