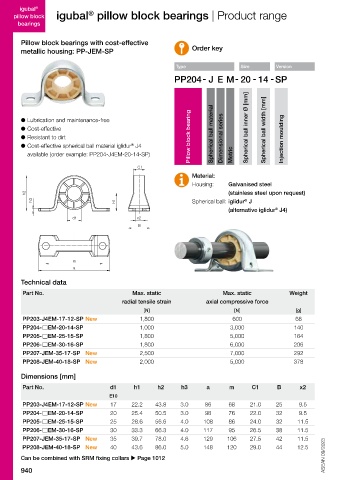

igubal
®
®
pillow block igubal pillow block bearings | Product range
bearings

Pillow block bearings with cost-effective
metallic housing: PP-JEM-SP Order key

Type Size Version

● Lubrication and maintenance-free
● Cost-effective Spherical ball inner Ø [mm] Spherical ball width [mm]
● Resistant to dirt Pillow block bearing Spherical ball material Dimensional series Injection moulding
®
● Cost-effective spherical ball material iglidur J4
available (order example: PP204-J4EM-20-14-SP) Metric

C1
Material:
Housing: Galvanised steel
h2 (stainless steel upon request)
h3 h1 Spherical ball: iglidur J
®
(alternative iglidur J4)
®
d1 x2
B

m
a

Technical data ®

Part No. Max. static Max. static Weight igubal fixed flange bearings
radial tensile strain axial compressive force
[N] [N] [g]
PP203-J4EM-17-12-SP New 1,800 600 68 Maintenance-free dry operation
PP204- EM-20-14-SP 1,000 3,000 140
PP205- EM-25-15-SP 1,800 5,000 164 High rigidity
PP206- EM-30-16-SP 1,800 6,000 206
PP207-JEM-35-17-SP New 2,500 7,000 292 Durable
PP208-JEM-40-18-SP New 2,000 5,000 378
Compensation of misalignment errors
Dimensions [mm]
Part No. d1 h1 h2 h3 a m C1 B x2 Compensation of edge loads
E10
PP203-J4EM-17-12-SP New 17 22.2 43.8 3.0 86 68 21.0 25 9.5 Lightweight
PP204- EM-20-14-SP 20 25.4 50.5 3.0 98 76 22.0 32 9.5
PP205- EM-25-15-SP 25 28.6 56.6 4.0 108 86 24.0 32 11.5
PP206- EM-30-16-SP 30 33.3 66.3 4.0 117 95 26.5 38 11.5
PP207-JEM-35-17-SP New 35 39.7 78.0 4.6 129 106 27.5 42 11.5
PP208-JEM-40-18-SP New 40 43.6 86.0 5.0 148 120 29.0 44 12.5

Can be combined with SRM fixing collars u Page 1012 ASEAN 09/2023 ASEAN 09/2023
