Page 939 - IGUS Bearing

igubal igubal
®
®
®
®
pillow block igubal pillow block bearings | Product range igubal pillow block bearings | Product range New pillow block
bearings bearings

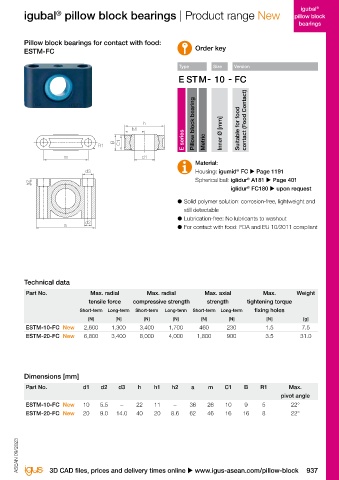

Split pillow block bearings for square profiles: Pillow block bearings for contact with food:
ESQM Order key ESTM-FC Order key

Type Size Type Size Version

Pillow block bearing for square profiles Edge length [mm] h1 h E series Pillow block bearing Inner Ø [mm] Suitable for food contact (Food Contact)

E series Metric R1 B C1 Metric

m
d1
Material:
m h
®
h1 Material: d3 Housing: igumid FC u Page 1191
Housing: igumid G u Page 1190 Spherical ball: iglidur A181 u Page 401
®
®
SW C 1 B h2
®
®
Spherical ball: iglidur J4 u Page 1186 iglidur FC180 u upon request
● Solid polymer solution: corrosion-free, lightweight and
More materials for special parts:
Spherical ball: iglidur P UV u Page 1189 still detectable
®
● Lubrication-free: No lubricants to washout
a d2
q ● For contact with food: FDA and EU 10/2011 compliant
h2
d2
a

● Profile 100x100mm, 110x110mm, 120x120mm Technical data
140x140mm or 150x150mm Part No. Max. radial Max. radial Max. axial Max. Weight
● Split version of housing and spherical balls tensile force compressive strength strength tightening torque
● Easy assembly and disassembly Short-term Long-term Short-term Long-term Short-term Long-term fixing holes
● High loads [N] [N] [N] [N] [N] [N] [N] [g]
● Lightweight ESTM-10-FC New 2,600 1,300 3,400 1,700 460 230 1.5 7.5
● Compensation of misalignment errors ESTM-20-FC New 6,800 3,400 8,000 4,000 1,800 900 3.5 31.0
● Mounting: M16 screw
● Recommended tightening torque: 50Nm

Dimensions [mm] Dimensions [mm]
Part No. q SW d2 h h1 h2 a m B C1 Weight Part No. d1 d2 d3 h h1 h2 a m C1 B R1 Max.
+1 [g] pivot angle
ESQM-100 100.5 24 17.5 228 108 13.6 260 225 60 50 1,295 ESTM-10-FC New 10 5.5 – 22 11 – 36 26 10 9 5 22°
ESQM-110 110.5 24 17.5 228 108 13.6 260 225 60 50 1,255 ESTM-20-FC New 20 9.0 14.0 40 20 8.6 62 46 16 16 8 22°
ESQM-120 120.0 24 17.5 228 108 13.6 260 225 60 50 1,210
ESQM-125 New 125.0 24 17.5 228 108 13.6 260 225 60 50 1,210
ESQM-140 140.5 24 17.5 266 130 15.0 307 269 60 50 1,670
ASEAN 09/2023 ASEAN 09/2023
ESQM-150 150.5 24 17.5 266 – 15.0 307 268 60 50 1,640

936 Online tools and more information u www.igus-asean.com/pillow-block 3D CAD files, prices and delivery times online u www.igus-asean.com/pillow-block 937
