igubal igubal
®
®
®
®
pillow block igubal pillow block bearings | Product range igubal pillow block bearings | Product range pillow block
bearings bearings

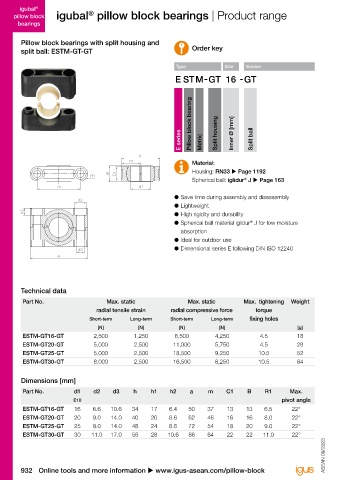

Pillow block bearings with split housing and Split housings with parallel holes: ESTM-GT
split ball: ESTM-GT-GT Order key Order key

Type Size Version Type Size Version

Pillow block bearing Pillow block bearing Dimensions [mm]

E series Metric Split housing Inner Ø [mm] Split ball E series Metric Split housing Inner Ø

h h1 h
h1 Material: Material:
®
Housing: RN33 u Page 1192 C1 igumid G u Page 1190
R1 B C1
Spherical ball: iglidur J u Page 163 R1
®
m d1 m
d1
● Save time during assembly and disassembly ● Easy to assemble and disassemble
d3
● Lightweight d3 ● Perfect for outdoor applications
h2 ● High rigidity and durability ● High loads
®
● Spherical ball material iglidur J for low moisture h2 ● Dimensional series E following DIN ISO 12240
absorption
● Ideal for outdoor use
d2 ● Dimensional series E following DIN ISO 12240
a
d2
a

Technical data Technical data
Part No. Max. static Max. static Max. tightening Weight Part No. Max. static Max. static Max. tightening Weight
radial tensile strain radial compressive force torque radial tensile strain radial compressive force torque
Short-term Long-term Short-term Long-term fixing holes Short-term Long-term Short-term Long-term fixing holes
[N] [N] [N] [N] [g] [N] [N] [N] [N] [g]
ESTM-GT16-GT 2,500 1,250 8,500 4,250 4.5 18 ESTM-GT16-25 3,600 1,800 7,000 3,500 4.5 12.6
ESTM-GT20-GT 5,000 2,500 11,000 5,750 4.5 28 ESTM-GT20-30 4,800 2,400 9,000 4,500 4.5 21.1
ESTM-GT25-GT 5,000 2,500 18,500 9,250 10.5 52 ESTM-GT25-35 8,500 4,250 15,000 7,500 10.5 39.9
ESTM-GT30-GT 8,000 2,500 16,500 8,250 10.5 84 ESTM-GT30-40 9,500 4,750 18,500 9,250 10.5 66.5

Dimensions [mm] Dimensions [mm]

Part No. d1 d2 d3 h h1 h2 a m C1 B R1 Max. Part No. d1 d2 d3 h h1 h2 a m C1 R1
E10 pivot angle E10
ESTM-GT16-GT 16 6.6 10.6 34 17 6.4 50 37 13 13 6.5 22° ESTM-GT16-25 25 6.6 10.6 34 17 6.4 50 37 13 6.5
ESTM-GT20-GT 20 9.0 14.0 40 20 8.6 62 46 16 16 8.0 22° ESTM-GT20-30 30 9.0 14.0 40 20 8.6 62 46 16 8.0
ESTM-GT25-GT 25 9.0 14.0 48 24 8.6 72 54 18 20 9.0 22° ESTM-GT25-35 35 9.0 14.0 48 24 8.6 72 54 18 9.0
ESTM-GT30-GT 30 11.0 17.0 56 28 10.6 86 64 22 22 11.0 22° ESTM-GT30-40 40 11.0 17.0 56 28 10.6 86 64 22 11.0
ASEAN 09/2023 ASEAN 09/2023

932 Online tools and more information u www.igus-asean.com/pillow-block 3D CAD files, prices and delivery times online u www.igus-asean.com/pillow-block 933
