igubal igubal
®
®
®
®
pillow block igubal pillow block bearings | Product range igubal pillow block bearings | Product range pillow block
bearings bearings

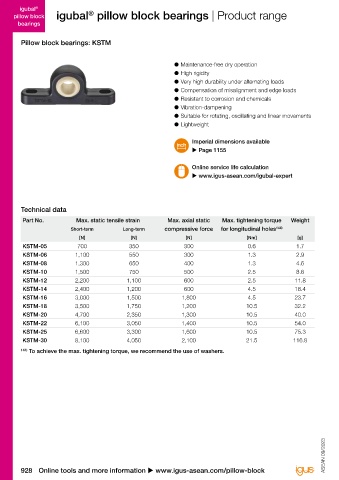

Pillow block bearings: KSTM Pillow block bearings: KSTM
Order key

● Maintenance-free dry operation d1 Type Size
● High rigidity
● Very high durability under alternating loads
● Compensation of misalignment and edge loads
● Resistant to corrosion and chemicals h2
● Vibration-dampening h1 h3
● Suitable for rotating, oscillating and linear movements m
● Lightweight a Pillow block bearing

Imperial dimensions available K series Inner Ø [mm]
u Page 1155 B C1 d2 Metric

x2
Online service life calculation Material:
u www.igus-asean.com/igubal-expert Housing: igumid G u Page 1190
®
Spherical ball: iglidur W300 u Page 175
®

Technical data Dimensions [mm]

Part No. Max. static tensile strain Max. axial static Max. tightening torque Weight Part No. d1 B C1 h1 h2 m a h3 d2 x2 Max.
Short-term Long-term compressive force for longitudinal holes 144) E10 pivot angle
[N] [N] [N] [Nm] [g]
KSTM-05 700 350 300 0.6 1.7 KSTM-05 5 8 6.0 7 14 25 34 4.0 3.3 4.6 30°
KSTM-06 1,100 550 300 1.3 2.9 KSTM-06 6 9 7.0 10 18 33 43 5.5 4.5 6.0 29°
KSTM-08 1,300 650 400 1.3 4.6 KSTM-08 8 12 9.0 10 20 33 47 6.0 4.5 7.0 25°
KSTM-10 1,500 750 500 2.5 8.6 KSTM-10 10 14 10.5 14 26 46 62 7.5 5.5 8.0 25°
KSTM-12 2,200 1,100 600 2.5 11.8 KSTM-12 12 16 12.0 14 28 46 65 8.5 5.5 9.0 25°
KSTM-14 2,400 1,200 600 4.5 18.4 KSTM-14 14 19 13.5 18 34 60 82 9.5 6.6 11.0 23°
KSTM-16 3,000 1,500 1,800 4.5 23.7 KSTM-16 16 21 15.0 18 36 60 86 10.5 6.6 12.0 23°
KSTM-18 3,500 1,750 1,200 10.5 32.2 KSTM-18 18 23 16.5 22 42 68 93 11.5 9.0 13.0 23°
KSTM-20 4,700 2,350 1,300 10.5 40.0 KSTM-20 20 25 18.0 22 44 68 98 13.0 9.0 14.0 23°
KSTM-22 6,100 3,050 1,400 10.5 54.0 KSTM-22 22 28 20.0 24 48 74 108 14.0 9.0 16.0 22°
KSTM-25 6,600 3,300 1,600 10.5 75.3 KSTM-25 25 31 22.0 27 54 86 124 16.0 9.0 17.0 22°
KSTM-30 8,100 4,050 2,100 21.5 116.8 KSTM-30 30 37 25.0 32 64 96 139 17.0 11.0 20.0 22°
144) To achieve the max. tightening torque, we recommend the use of washers.

ASEAN 09/2023 ASEAN 09/2023

928 Online tools and more information u www.igus-asean.com/pillow-block 3D CAD files, prices and delivery times online u www.igus-asean.com/pillow-block 929
