igubal igubal
®
®
®
®

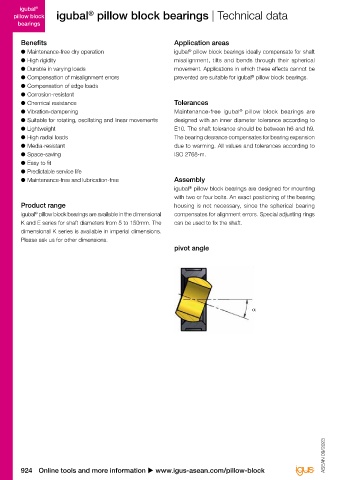

pillow block igubal pillow block bearings | Technical data igubal pillow block bearings | Product overview pillow block
bearings bearings
Benefits Application areas igubal pillow block bearing
®
®
● Maintenance-free dry operation igubal pillow block bearings ideally compensate for shaft
● High rigidity misalignment, tilts and bends through their spherical
● Durable in varying loads movement. Applications in which these effects cannot be
®
● Compensation of misalignment errors prevented are suitable for igubal pillow block bearings.
● Compensation of edge loads
● Corrosion-resistant
● Chemical resistance Tolerances Clip-on version: Compensation of Easy to disassemble, Easy installation
®
● Vibration-dampening Maintenance-free igubal pillow block bearings are KSTM-CL misalignment errors split housing and ball
● Suitable for rotating, oscillating and linear movements designed with an inner diameter tolerance according to K series K series K series E series
● Lightweight E10. The shaft tolerance should be between h6 and h9. u Page 926 u Page 928 u Page 930 u Page 931
● High radial loads The bearing clearance compensates for bearing expansion
● Media-resistant due to warming. All values and tolerances according to
● Space-saving ISO 2768-m.
● Easy to fit New
● Predictable service life
● Maintenance-free and lubrication-free Assembly
igubal pillow block bearings are designed for mounting
®
with two or four bolts. An exact positioning of the bearing
Product range housing is not necessary, since the spherical bearing For quick assembly and Split housing with parallel Extremely light, Space-saving
igubal pillow block bearings are available in the dimensional compensates for alignment errors. Special adjusting rings low total moisture hole compact design
®
K and E series for shaft diameters from 5 to 150mm. The can be used to fix the shaft. absorption
dimensional K series is available in imperial dimensions. E series E series E series E series
Please ask us for other dimensions. u Page 932 u Page 933 u Page 934 u Page 935
pivot angle

New
New New

α
Split pillow block bearings Pillow block bearings for Pillow block bearing with Pillow block bearing with
for square profiles contact with food polymer housing cast iron housing
E series E series
u Page 936 u Page 937 u Page 938 u Page 939

igubal combination with xiros ball bearings
®
®

Pillow block bearings with Low coefficient of friction,
cost-effective metallic fixed and pivoting version
housing E series
u Page 940 u From page 1086

ASEAN 09/2023 ASEAN 09/2023

924 Online tools and more information u www.igus-asean.com/pillow-block 3D CAD files, prices and delivery times online u www.igus-asean.com/pillow-block 925
