igubal
®
®
clevis igubal clevis joints | Product range
joints

Clevis joints with spring-loaded fixing clips,
detectable, FDA and EU10/2011-compliant: Order key
GERMF-FC
Type Size Version

Spring-loaded fixing clip Suitable for food contact

Clevis joint E series Thread Metric Inner Ø [mm]

● Lubrication and maintenance-free ● Corrosion and media-resistant
● Visually and magnetically detectable ● Vibration-dampening
● Compliant with Regulation (EU) No. 10/2011 ● Cost-effective
and FDA guidelines
Material:
igumid FC u Page 1191
®

Technical data
Part No. Max. static tensile strain Max. static axial force Weight
Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [g]
GERMF-04-FC 400 200 200 100 1.3
GERMF-05-DIN-M5-FC 700 350 250 125 2.3 ®

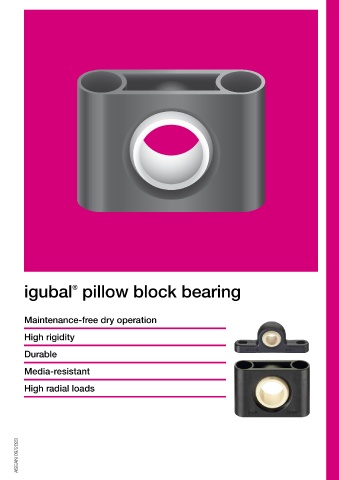

GERMF-05-FC New 800 450 250 125 3.9 igubal pillow block bearing
GERMF-06-FC 1,200 600 250 125 3.9
GERMF-08-FC 2,000 1,000 650 325 9.1
GERMF-10-FC 3,000 1,500 800 400 18.3 Maintenance-free dry operation
GERMF-10-FC-F 3,000 1,500 800 400 18.3
GERMF-12-FC 3,000 1,500 900 450 29.0 High rigidity
GERMF-12-FC-F 3,000 1,500 900 450 29.0
Left-hand thread upon request Durable

Media-resistant

High radial loads

ASEAN 09/2023 ASEAN 09/2023

920 Online tools and more information u www.igus-asean.com/clevis
