igubal igubal
®
®
®
®

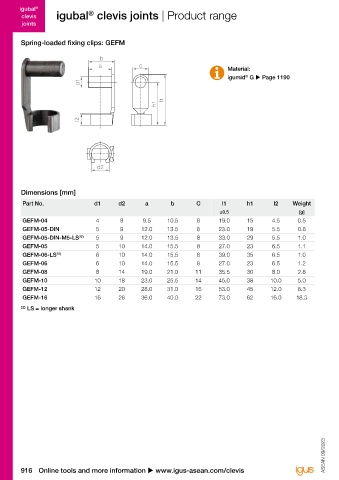

clevis igubal clevis joints | Product range igubal clevis joints | Product range clevis
joints joints
Spring-loaded fixing clips: GEFM Clevis pins: GBM

l
b m
a c
Material: Material:
®
igumid G u Page 1190 igumid G u Page 1190
®
d1 d3 d2 d1
Imperial dimensions available
l1
h1 l1 u Page 1157

l2
Dimensions [mm]
Part No. d1 d2 d3 I l1 m Clip Weight
[g]
GBM-04 4 3.2 7 12.5 8 1.05 GSR-04 0.3
GBM-05 5 4.0 8 16.5 12 1.15 GSR-06 0.5
d2 GBM-05-DIN 5 4.0 8 14.5 10 1.15 GSR-06 0.5
GBM-06 6 4.0 9 16.5 12 1.15 GSR-06 0.7
GBM-08 8 5.0 12 21.5 16 1.15 GSR-08 1.5
Dimensions [mm] GBM-10 10 7.0 15 27.0 20 1.35 GSR-10 3.0

Part No. d1 d2 a b C l1 h1 l2 Weight GBM-12 12 9.0 18 31.5 24 1.50 GSR-12 4.8
±0.5 [g] GBM-14 14 12.0 22 36.0 27 1.70 GSR-16 5.7
GEFM-04 4 8 9.5 10.5 8 19.0 15 4.5 0.5 GBM-15 15 12.0 23 36.0 27 1.70 GSR-16 8.3
GEFM-05-DIN 5 9 12.0 13.5 8 23.0 19 5.5 0.8 GBM-16 16 12.0 24 42.0 32 1.70 GSR-16 10.4
GEFM-05-DIN-M5-LS 22) 5 9 12.0 13.5 8 33.0 29 5.5 1.0 GBM-17 17 12.0 25 42.0 32 1.70 GSR-16 12.3
GEFM-05 5 10 14.0 15.5 8 27.0 23 6.5 1.1 GBM-20 20 15.0 30 51.0 40 2.00 GSR-20 19.2
GEFM-06-LS 22) 6 10 14.0 15.5 8 39.0 35 6.5 1.0
GEFM-06 6 10 14.0 15.5 8 27.0 23 6.5 1.2 Circlips: GSR
GEFM-08 8 14 19.0 21.0 11 35.5 30 8.0 2.8
GEFM-10 10 18 23.0 25.5 14 45.0 38 10.0 5.0
GEFM-12 12 20 28.0 31.0 16 53.0 45 12.0 8.3
GEFM-16 16 26 36.0 40.0 22 73.0 62 16.0 18.3 Material:

22) LS = longer shank POM u Page 1192

d1 b
d2
Dimensions [mm]
Part No. d1 d2 b Weight
[g]
GSR-04 3.2 7.0 1.0 0.05
GSR-06 4.0 9.0 1.1 0.06
GSR-08 5.0 11.0 1.1 0.12
GSR-10 7.0 14.0 1.3 0.16
GSR-12 9.0 18.5 1.4 0.31
GSR-16 12.0 23.0 1.6 0.58
GSR-20 15.0 28.0 1.9 0.96
