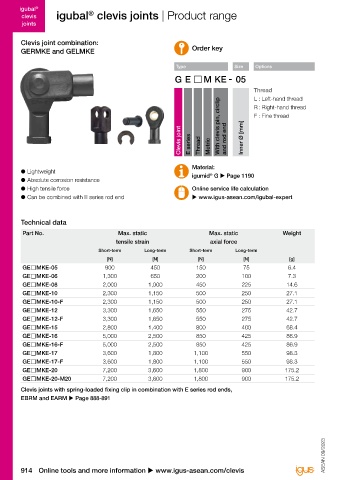

Page 916 - IGUS Bearing

igubal igubal
®
®
®
®
clevis igubal clevis joints | Product range igubal clevis joints | Product range clevis
joints joints
Clevis joint combination: Clevis joint combination:
GERMKE and GELMKE Order key GERMFE and GELMFE Order key

Type Size Options Type Size Options

Thread Thread
L : Left-hand thread
L : Left-hand thread
With clevis pin, circlip F : Fine thread With spring-loaded fixing clip and rod end F : Fine thread
R : Right-hand thread
R : Right-hand thread

Clevis joint E series Thread Metric and rod end Inner Ø [mm] Clevis joint E series Thread Metric Inner Ø [mm]

Material: Material:
● Lightweight igumid G u Page 1190 ● Lightweight igumid G u Page 1190
®
®
● Absolute corrosion resistance ● Absolute corrosion resistance
● High tensile force Online service life calculation ● High tensile force Online service life calculation
● Can be combined with E series rod end u www.igus-asean.com/igubal-expert ● Can be combined with E series rod end u www.igus-asean.com/igubal-expert

Technical data Technical data
Part No. Max. static Max. static Weight Part No. Max. static Max. static Weight
tensile strain axial force tensile strain axial force
Short-term Long-term Short-term Long-term Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [g] [N] [N] [N] [N] [g]
GE MKE-05 900 450 150 75 6.4 GE MFE-05 900 450 150 75 7.0
GE MKE-06 1,300 650 200 100 7.3 GE MFE-06 1,300 650 200 100 7.9
GE MKE-08 2,000 1,000 450 225 14.6 GE MFE-08 2,000 1,000 450 225 15.9
GE MKE-10 2,300 1,150 500 250 27.1 GE MFE-10 2,300 1,150 500 250 29.2
GE MKE-10-F 2,300 1,150 500 250 27.1 GE MFE-10-F 2,300 1,150 500 250 29.2
GE MKE-12 3,300 1,650 550 275 42.7 GE MFE-12 3,300 1,650 550 275 46.0
GE MKE-12-F 3,300 1,650 550 275 42.7 GE MFE-12-F 3,300 1,650 550 275 46.0
GE MKE-15 2,800 1,400 800 400 68.4 GE MFE-16 5,000 2,500 850 425 94.4
GE MKE-16 5,000 2,500 850 425 86.9 GE MFE-16-F 5,000 2,500 850 425 94.4
GE MKE-16-F 5,000 2,500 850 425 86.9 Clevis joints with spring-loaded fixing clip in combination with E series rod ends,
GE MKE-17 3,600 1,800 1,100 550 98.3 EBRM and EARM u Page 888-891
GE MKE-17-F 3,600 1,800 1,100 550 98.3
GE MKE-20 7,200 3,600 1,800 900 175.2
GE MKE-20-M20 7,200 3,600 1,800 900 175.2

Clevis joints with spring-loaded fixing clip in combination with E series rod ends,
EBRM and EARM u Page 888-891

ASEAN 09/2023 ASEAN 09/2023

914 Online tools and more information u www.igus-asean.com/clevis 3D CAD files, prices and delivery times online u www.igus-asean.com/clevis 915
