igubal igubal
®
®
®
®
clevis igubal clevis joints | Product range igubal clevis joints | Product range clevis
joints joints

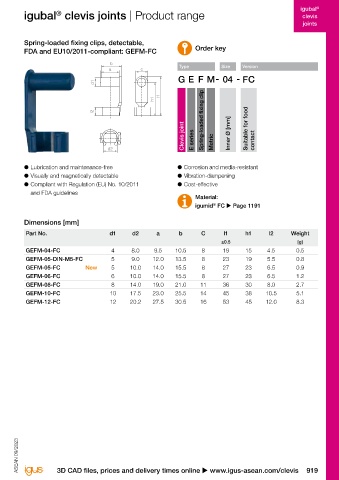

Clevis joints, detectable, Spring-loaded fixing clips, detectable,
FDA and EU10/2011-compliant: GERM-FC Order key FDA and EU10/2011-compliant: GEFM-FC Order key

d1
b1 Type Size Version b Type Size Version
a c
d1

g
l2 h1 l1
h1

l1 l2
d2 Suitable for food Spring-loaded fixing clip Suitable for food
d3
a1 Clevis joint E series Thread Inner Ø [mm] contact Clevis joint E series Inner Ø [mm] contact

a2 Metric d2 Metric

● Lubrication and maintenance-free ● Corrosion and media-resistant ● Lubrication and maintenance-free ● Corrosion and media-resistant
● Visually and magnetically detectable ● Vibration-dampening ● Visually and magnetically detectable ● Vibration-dampening
● Compliant with Regulation (EU) No. 10/2011 ● Cost-effective ● Compliant with Regulation (EU) No. 10/2011 ● Cost-effective
and FDA guidelines Material: and FDA guidelines Material:
● Left-hand thread upon request
®
®
igumid FC u Page 1191 igumid FC u Page 1191
Technical data Dimensions [mm]
Part No. Max. static tensile strain Max. static axial force Max. tightening Weight Part No. d1 d2 a b C l1 h1 l2 Weight
Short-term Long-term Short-term Long-term torque ±0.5 [g]
[N] [N] [N] [N] [Nm] [g] GEFM-04-FC 4 8.0 9.5 10.5 8 19 15 4.5 0.5
GERM-04-FC 600 300 200 100 1.0 0.8 GEFM-05-DIN-M5-FC 5 9.0 12.0 13.5 8 23 19 5.5 0.8
GERM-05-DIN-M5-FC 800 400 250 125 1.5 1.5 GEFM-05-FC New 5 10.0 14.0 15.5 8 27 23 6.5 0.9
GERM-05-FC New 900 450 250 125 0.5 3.0 GEFM-06-FC 6 10.0 14.0 15.5 8 27 23 6.5 1.2
GERM-06-FC 1,400 700 250 125 1.5 2.5 GEFM-08-FC 8 14.0 19.0 21.0 11 36 30 8.0 2.7
GERM-08-FC 2,300 1,150 650 325 5.0 6.4 GEFM-10-FC 10 17.5 23.0 25.5 14 45 38 10.5 5.1
GERM-10-FC 4,000 2,000 800 400 10.0 13.2 GEFM-12-FC 12 20.2 27.5 30.5 16 53 45 12.0 8.3
GERM-10-FC-F 4,000 2,000 800 400 10.0 13.2
GERM-12-FC 5,000 2,500 900 450 15.0 20.7
GERM-12-FC-F 5,000 2,500 900 450 15.0 20.7

Dimensions [mm]

Part No. d1 g a1 a2 b1 d2 d3 I2 h1 I1
+0.3 +0.3 ±0.3 ±0.5 ±0.3 ±0.2
-0.16 -0.16
GERM-04-FC 4 8.0 8.0 8.0 4.1 M4 8 21.0 16.0 6.0
GERM-05-DIN-M5-FC 5 10.0 9.9 9.9 5.3 M5 9 24.5 20.0 7.5
GERM-05-FC New 5 12.0 12.0 12.0 6.0 M5 10 31.0 24.0 9.0
GERM-06-FC 6 12.0 12.0 12.0 6.2 M6 10 31.0 24.0 9.0
GERM-08-FC 8 15.9 15.8 15.8 8.2 M8 14 42.0 32.0 12.0
GERM-10-FC 10 19.5 19.9 19.9 9.5 M10 18 51.3 39.5 14.8
GERM-10-FC-F 10 19.5 19.9 19.9 9.5 M10 x 1.25 18 51.3 39.5 14.8
GERM-12-FC 12 24.0 23.7 23.7 12.2 M12 20 61.3 48.0 18.0
GERM-12-FC-F 12 23.5 23.7 23.7 12.2 M12 x 1.25 20 61.3 48.0 18.0

Left-hand thread and other dimensions available upon request ASEAN 09/2023 ASEAN 09/2023
