igubal igubal
®
®
®
®
clevis igubal clevis joints | Product range igubal clevis joints | Product range clevis
joints joints

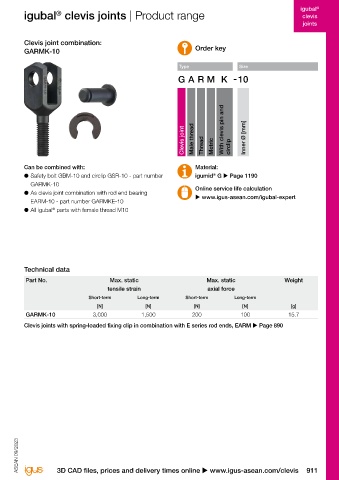

Clevis joints with male thread: Clevis joint combination:
GARM-10 Order key GARMK-10 Order key

d1
Type Size Type Size
b1

g
l2
h1
l1
l3

Clevis joint Male thread Inner Ø [mm] Clevis joint Male thread Inner Ø [mm]
d2 With clevis pin and
a1 Thread Metric Thread Metric circlip
a2

● Available from stock in thread size M10 Material: Can be combined with: Material:
(M8 and M12 in preparation) igumid G u Page 1190 ● Safety bolt GBM -10 and circlip GSR -10 - part number igumid G u Page 1190
®
®
● For direct connection to, for example, igubal rod end Online service life calculation GARMK -10 Online service life calculation
®
bearings u www.igus-asean.com/igubal-expert ● As clevis joint combination with rod end bearing u www.igus-asean.com/igubal-expert
● Lightweight EARM -10 - part number GARMKE -10
®
● Lubrication and maintenance-free ● All igubal parts with female thread M10
● Absolute corrosion resistance
● Available for right-hand thread (left-hand thread upon
request)

Technical data Technical data

Part No. Max. static Max. static Max. Weight Part No. Max. static Max. static Weight
tensile strain axial force tightening tensile strain axial force

Short-term Long-term Short-term Long-term torque Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [Nm] [g] [N] [N] [N] [N] [g]
GARM-10 3,000 1,500 200 100 5.0 12.5 GARMK-10 3,000 1,500 200 100 15.7

Clevis joints with spring-loaded fixing clip in combination with E series rod ends, EARM u Page 890
Dimensions [mm]

Part No. d1 g a1 a2 b1 d2 I2 I3 h1 I1
+0.1 h11 +0.3 +0.3 B13 ±0.5 ±0.3 ±0.3 ±0.2
-0.16 -0.16
GARM-10 10 19 20 20 10 M10 69 25 57 30.3

ASEAN 09/2023 ASEAN 09/2023

910 Online tools and more information u www.igus-asean.com/clevis 3D CAD files, prices and delivery times online u www.igus-asean.com/clevis 911
