P. 911
igubal igubal
®
®
®
®
clevis igubal clevis joints | Product range igubal clevis joints | Product range clevis
joints joints

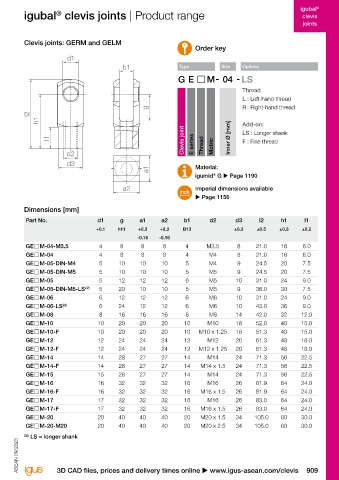

Clevis joints: GERM and GELM Clevis joints: GERM and GELM
Order key
d1
● Lightweight b1 Type Size Options
● High rigidity
● Absolute corrosion resistance Thread
● High tensile force L : Left-hand thread
● Can be combined with rod ends of the dimensional
g R : Right-hand thread
series E l2
● Vibration-dampening h1 Add-on:
● Noise-dampening LS : Longer shank
● Available with left- (GELM) and right-hand-thread l1 Clevis joint Inner Ø [mm] F : Fine thread
(GERM) E series Thread Metric
d2
d3
Online service life calculation a1 Material:
u www.igus-asean.com/igubal-expert igumid G u Page 1190
®
a2 Imperial dimensions available
u Page 1156
Technical data Dimensions [mm]
Part No. Max. static Max. static Max. Weight Part No. d1 g a1 a2 b1 d2 d3 I2 h1 I1
tensile strain axial force tightening +0.1 h11 +0.3 +0.3 B13 ±0.3 ±0.5 ±0.3 ±0.2
Short-term Long-term Short-term Long-term torque -0.16 -0.16
[N] [N] [N] [N] [Nm] [g] GE M-04-M3.5 4 8 8 8 4 M3.5 8 21.0 16 6.0
GE M-04-M3.5 650 325 250 125 0.4 0.9 GE M-04 4 8 8 8 4 M4 8 21.0 16 6.0
GE M-04 650 325 250 125 0.4 0.9 GE M-05-DIN-M4 5 10 10 10 5 M4 9 24.5 20 7.5
GE M-05-DIN-M4 1,000 500 250 125 0.4 1.5 GE M-05-DIN-M5 5 10 10 10 5 M5 9 24.5 20 7.5
GE M-05-DIN-M5 1,000 500 250 125 0.5 1.5 GE M-05 5 12 12 12 6 M5 10 31.0 24 9.0
GE M-05 1,200 600 250 125 0.5 2.7 GE M-05-DIN-M5-LS 22) 5 20 10 10 5 M5 9 36.0 30 7.5
GE M-05-DIN-M5-LS 22) 1,000 500 130 65 0.5 2.3 GE M-06 6 12 12 12 6 M6 10 31.0 24 9.0
GE M-06 1,400 700 300 150 1.5 2.5 GE M-06-LS 22) 6 24 12 12 6 M6 10 43.0 36 9.0
GE M-06-LS 22) 1,400 700 130 65 1.5 3.6 GE M-08 8 16 16 16 8 M8 14 42.0 32 12.0
GE M-08 2,700 1,350 650 325 5.0 6.3 GE M-10 10 20 20 20 10 M10 18 52.0 40 15.0
GE M-10 4,700 2,350 800 400 15.0 13.2 GE M-10-F 10 20 20 20 10 M10 x 1.25 18 51.3 40 15.0
GE M-10-F 4,700 2,350 800 400 6.0 13.2 GE M-12 12 24 24 24 12 M12 20 61.3 48 18.0
GE M-12 5,700 2,850 900 450 20.0 20.2 GE M-12-F 12 24 24 24 12 M12 x 1.25 20 61.3 48 18.0
GE M-12-F 5,700 2,850 900 450 15.0 20.2 GE M-14 14 28 27 27 14 M14 24 71.3 56 22.5
GE M-14 6,600 3,300 1,000 500 25.0 29.9 GE M-14-F 14 28 27 27 14 M14 x 1.5 24 71.3 56 22.5
GE M-14-F 6,600 3,300 1,000 500 20.0 29.9 GE M-15 15 28 27 27 14 M14 24 71.3 56 22.5
GE M-15 3,200 1,600 1,000 500 25.0 30.0 GE M-16 16 32 32 32 16 M16 26 81.9 64 24.0
GE M-16 7,500 3,750 1,200 600 30.0 49.9 GE M-16-F 16 32 32 32 16 M16 x 1.5 26 81.9 64 24.0
GE M-16-F 7,500 3,750 1,200 600 27.5 49.9 GE M-17 17 32 32 32 16 M16 26 83.0 64 24.0
GE M-17 3,600 1,800 1,200 600 30.0 50.0 GE M-17-F 17 32 32 32 16 M16 x 1.5 26 83.0 64 24.0
GE M-17-F 3,600 1,800 1,200 600 27.5 50.0 GE M-20 20 40 40 40 20 M20 x 1.5 34 105.0 80 30.0
GE M-20 9,500 4,750 3,000 1,500 60.0 105.0 GE M-20-M20 20 40 40 40 20 M20 x 2.5 34 105.0 80 30.0
GE M-20-M20 9,500 4,750 3,000 1,500 80.0 105.0 22) LS = longer shank
ASEAN 09/2023 ASEAN 09/2023
22) LS = longer shank
