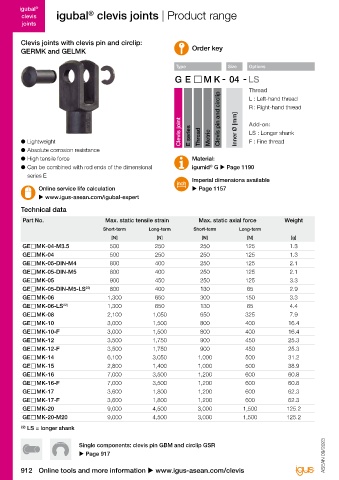

Page 914 - IGUS Bearing

igubal igubal
®
®
®
®
clevis igubal clevis joints | Product range igubal clevis joints | Product range clevis
joints joints
Clevis joints with clevis pin and circlip: Clevis joints with spring-loaded fixing clip:
GERMK and GELMK Order key GERMF and GELMF Order key

Type Size Options Type Size Options

Thread Thread
L : Left-hand thread
L : Left-hand thread
R : Right-hand thread
R : Right-hand thread
Clevis joint E series Clevis pin and circlip Inner Ø [mm] Add-on: Clevis joint E series Spring-loaded fixing clip Inner Ø [mm] Add-on:
LS : Longer shank
LS : Longer shank
● Lightweight Thread Metric F : Fine thread One-piece design Thread Metric F : Fine thread
● Absolute corrosion resistance ● Easy assembly/disassembly
● High tensile force Material: ● Easy assembly also for use in hard to reach locations Material:
®
● Can be combined with rod ends of the dimensional igumid G u Page 1190 ● Can be combined with rod ends of the dimensional igumid G u Page 1190
®
series E ●
Imperial dimensions available series E Online service life calculation
Online service life calculation u Page 1157 ● Corrosion-resistant and lightweight u www.igus-asean.com/igubal-expert
u www.igus-asean.com/igubal-expert

Technical data Technical data

Part No. Max. static tensile strain Max. static axial force Weight Part No. Max. static tensile strain Max. static axial force Weight
Short-term Long-term Short-term Long-term Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [g] [N] [N] [N] [N] [g]
GE MK-04-M3.5 500 250 250 125 1.3 GE MF-04-M3.5 500 250 250 125 1.3
GE MK-04 500 250 250 125 1.3 GE MF-04 500 250 250 125 1.3
GE MK-05-DIN-M4 800 400 250 125 2.1 GE MF-05-DIN-M4 800 400 250 125 2.3
GE MK-05-DIN-M5 800 400 250 125 2.1 GE MF-05-DIN-M5 800 400 250 125 2.3
GE MK-05 900 450 250 125 3.3 GE MF-05-DIN-M5-LS 22) 800 400 130 65 2.3
GE MK-05-DIN-M5-LS 22) 800 400 130 65 2.9 GE MF-05 900 450 250 125 3.8
GE MK-06 1,300 650 300 150 3.3 GE MF-06 1,300 650 300 150 3.9
GE MK-06-LS 22) 1,300 650 130 65 4.4 GE MF-06-LS 22) 1,300 650 130 65 3.9
GE MK-08 2,100 1,050 650 325 7.9 GE MF-08 2,100 1,050 650 325 9.1
GE MK-10 3,000 1,500 800 400 16.4 GE MF-10 3,000 1,500 800 400 18.2
GE MK-10-F 3,000 1,500 800 400 16.4 GE MF-10-F 3,000 1,500 800 400 18.2
GE MK-12 3,500 1,750 900 450 25.3 GE MF-12 3,500 1,750 900 450 28.6
GE MK-12-F 3,500 1,750 900 450 25.3 GE MF-12-F 3,500 1,750 900 450 28.6
GE MK-14 6,100 3,050 1,000 500 31.2 GE MF-16 7,000 3,500 1,200 600 61.8
GE MK-15 2,800 1,400 1,000 500 38.9 GE MF-16-F 7,000 3,500 1,200 600 61.8
GE MK-16 7,000 3,500 1,200 600 60.8 22) LS = longer shank
GE MK-16-F 7,000 3,500 1,200 600 60.8
GE MK-17 3,600 1,800 1,200 600 62.3
GE MK-17-F 3,600 1,800 1,200 600 62.3
GE MK-20 9,000 4,500 3,000 1,500 125.2
GE MK-20-M20 9,000 4,500 3,000 1,500 125.2
22) LS = longer shank

Single components: clevis pin GBM and circlip GSR Single components: spring-loaded fixing clip GEFM
u Page 917 ASEAN 09/2023 ASEAN 09/2023 u Page 916

912 Online tools and more information u www.igus-asean.com/clevis 3D CAD files, prices and delivery times online u www.igus-asean.com/clevis 913
