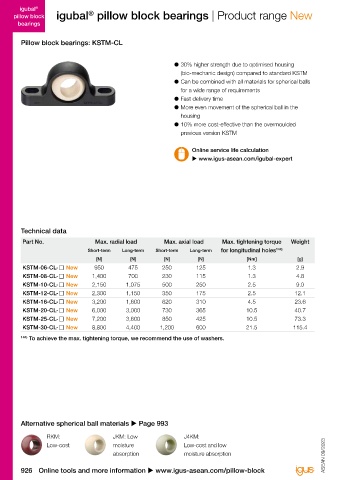

Pillow block bearings: KSTM-CL Pillow block bearings: KSTM-CL
Order key

● 30% higher strength due to optimised housing d1 Type Size
(bio-mechanic design) compared to standard KSTM
● Can be combined with all materials for spherical balls
for a wide range of requirements Spherical ball material
®
● Fast delivery time h2 Blank : iglidur W300
● More even movement of the spherical ball in the h1 h3 R : iglidur R
®
housing m J : iglidur J
®
®
● 10% more cost-effective than the overmoulded a Pillow block bearing J4 : iglidur J4
previous version KSTM Inner Ø [mm] 2nd generation
K series Metric
Online service life calculation
B C1 d2
u www.igus-asean.com/igubal-expert
x2 Material:
Housing: igumid G u Page 1190
®
Spherical ball: iglidur W300 u Page 175
®

Technical data Dimensions [mm]
Part No. Max. radial load Max. axial load Max. tightening torque Weight Part No. d1 B C1 h1 h2 m a h3 d2 x2 Max.
Short-term Long-term Short-term Long-term for longitudinal holes 144) E10 pivot angle
[N] [N] [N] [N] [Nm] [g]
KSTM-06-CL- New 950 475 250 125 1.3 2.9 KSTM-06-CL- New 6 9 7.0 10 18 33 43 5.5 4.5 6.0 36°
KSTM-08-CL- New 1,400 700 230 115 1.3 4.8 KSTM-08-CL- New 8 12 9.0 10 20 33 47 6.0 4.5 7.0 33°
KSTM-10-CL- New 2,150 1,075 500 250 2.5 9.0 KSTM-10-CL- New 10 14 10.5 14 26 46 62 7.5 5.5 8.0 33°
KSTM-12-CL- New 2,300 1,150 350 175 2.5 12.1 KSTM-12-CL- New 12 16 12.0 14 28 46 65 8.5 5.5 9.0 33°
KSTM-16-CL- New 3,200 1,600 620 310 4.5 23.6 KSTM-16-CL- New 16 21 15.0 18 36 60 86 10.5 6.6 12.0 32°
KSTM-20-CL- New 6,000 3,000 730 365 10.5 40.7 KSTM-20-CL- New 20 25 18.0 22 44 68 95 13.0 9.0 14.0 31°
KSTM-25-CL- New 7,200 3,600 850 425 10.5 73.3 KSTM-25-CL- New 25 31 22.0 27 54 86 121 16.0 9.0 17.0 31°
KSTM-30-CL- New 8,800 4,400 1,200 600 21.5 115.4 KSTM-30-CL- New 30 37 25.0 32 64 96 139 17.0 11.0 20.0 31°

144) To achieve the max. tightening torque, we recommend the use of washers.

Alternative spherical ball materials u Page 993

RKM: JKM: Low J4KM:
Low-cost moisture Low-cost and low
absorption moisture absorption ASEAN 09/2023 ASEAN 09/2023
