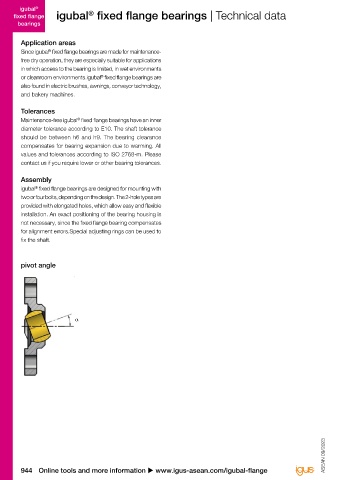

fixed flange igubal fixed flange bearings | Technical data igubal fixed flange bearings | Product overview fixed flange
bearings bearings
igubal fixed flange bearings - for temperatures up to +80 °C
®
Application areas
Since igubal fixed flange bearings are made for maintenance-
®
free dry operation, they are especially suitable for applications
in which access to the bearing is limited, in wet environments
or cleanroom environments.igubal fixed flange bearings are
®
also found in electric brushes, awnings, conveyor technology,
and bakery machines. Easy installation For high radial loads Universal and quick Universal and quick
assembly assembly

Tolerances E series E series Female thread Male thread
Maintenance-free igubal fixed flange bearings have an inner u From page 946 u From page 948 u Page 950 u Page 951
®
diameter tolerance according to E10. The shaft tolerance
®
®
should be between h6 and h9. The bearing clearance igubal fixed flange bearings - igubal fixed flange
compensates for bearing expansion due to warming. All for temperatures up to +200°C bearings for contact
values and tolerances according to ISO 2768-m. Please with food
contact us if you require lower or other bearing tolerances.

Assembly
igubal fixed flange bearings are designed for mounting with
®
two or four bolts, depending on the design. The 2-hole types are
provided with elongated holes, which allow easy and flexible
installation. An exact positioning of the bearing housing is High static load, For high radial loads Easy installation Suitable for food contact
not necessary, since the fixed flange bearing compensates split housing
for alignment errors.Special adjusting rings can be used to K series E series E series E series
fix the shaft. u Page 952 u Page 953 u Page 954 u Page 955

®
igubal fixed flange bearing with plastic igubal fixed flange bearing with cast iron
®
pivot angle housing - dimensionally interchangeable housing - for high static loads
with cast iron housings
New New New New

α

Easy installation Completely corrosion-free High static loads Low coefficient of friction
E series E series E series E series
u Page 956 u Page 957 u Page 960 u Page 961

®
®
®
igubal fixed flange bearings igubal combination with xiros ball bearings
with cost-effective metallic housing

Easy replacement of the Low coefficient of friction, Low coefficient of friction,
spherical ball pivoting version pivoting version
ASEAN 09/2023 ASEAN 09/2023 u Page 962 u Page 1088 u Page 1089
E series
E series
