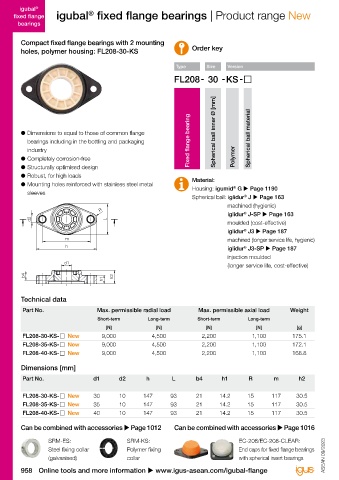

fixed flange igubal fixed flange bearings | Product range New igubal fixed flange bearings | Product range New fixed flange
bearings bearings
Compact fixed flange bearings with 2 mounting Compact fixed flange bearings with 4 mounting
holes, polymer housing: FL208-30-KS Order key holes, polymer housing: F208-30-KS Order key

Type Size Version Type Size Version

● Dimensions to equal to those of common flange Spherical ball inner Ø [mm] ● Dimensions to equal to those of common flange Spherical ball inner Ø [mm]
bearings including in the bottling and packaging Fixed flange bearing Spherical ball material bearings including in the bottling and packaging Fixed flange bearing Spherical ball material
industry industry
● Completely corrosion-free Polymer ● Completely corrosion-free Polymer
● Structurally optimised design ● Structurally optimised design
● Robust, for high loads Material: ● Robust, for high loads Material:
● Mounting holes reinforced with stainless steel metal Housing: igumid G u Page 1190 ● Mounting holes reinforced with stainless steel metal Housing: igumid G u Page 1190
®
®
sleeves sleeves
Spherical ball: iglidur J u Page 163 Spherical ball: iglidur J u Page 163
®
®
machined (hygienic) A Ag machined (hygienic)
R A1
®
iglidur J-SP u Page 163 h h1 iglidur J-SP u Page 163
®
d2 L m
moulded (cost-effective) moulded (cost-effective)
iglidur J3 u Page 187 iglidur J3 u Page 187
®
®
m machined (longer service life, hygienic) machined (longer service life, hygienic)
h
®
iglidur J3-SP u Page 187 iglidur J3-SP u Page 187
®
d1
injection moulded injection moulded
d1
(longer service life, cost-effective) (longer service life, cost-effective)
N
b4 h2
h1 R b4
A
Technical data Technical data
Part No. Max. permissible radial load Max. permissible axial load Weight Part No. Max. permissible radial load Max. permissible axial load Weight
Short-term Long-term Short-term Long-term Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [g] [N] [N] [N] [N] [g]
FL208-30-KS- New 9,000 4,500 2,200 1,100 175.1 F208-30-KS- New 16,500 8,250 1,200 600 236.8
FL208-35-KS- New 9,000 4,500 2,200 1,100 172.1 F208-35-KS- New 18,000 9,000 1,200 600 233.8
FL208-40-KS- New 9,000 4,500 2,200 1,100 168.8 F208-40-KS- New 20,000 10,000 1,200 600 230.5

Dimensions [mm] Dimensions [mm]
Part No. d1 d2 h L b4 h1 R m h2 Part No. d1 h m A1 Ag N b4 h1 R

FL208-30-KS- New 30 10 147 93 21 14.2 15 117 30.5 F208-30-KS- New 30 115 82.8 16.2 29 12 21 16 16.1
FL208-35-KS- New 35 10 147 93 21 14.2 15 117 30.5 F208-35-KS- New 35 115 82.8 16.2 29 12 21 16 16.1
FL208-40-KS- New 40 10 147 93 21 14.2 15 117 30.5 F208-40-KS- New 40 115 82.8 16.2 29 12 21 16 16.1

Can be combined with accessories u Page 1012 Can be combined with accessories u Page 1016 Can be combined with accessories u Page 1012 Can be combined with accessories u Page 1016

SRM-ES: SRM-KS: EC-208/EC-208-CLEAR: SRM-ES: SRM-KS: EC-208/EC-208-CLEAR:
Steel fixing collar Polymer fixing End caps for fixed flange bearings Steel fixing collar Polymer fixing End caps for fixed flange bearings
(galvanised) collar with spherical insert bearings ASEAN 09/2023 ASEAN 09/2023 (galvanised) collar with spherical insert bearings
