igubal
®
®

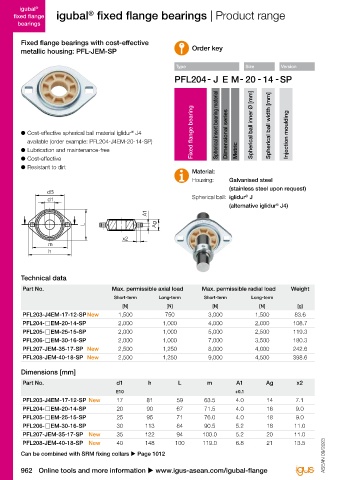

fixed flange igubal fixed flange bearings | Product range
bearings

Fixed flange bearings with cost-effective
metallic housing: PFL-JEM-SP Order key

Type Size Version

®
● Cost-effective spherical ball material iglidur J4 Fixed flange bearing Spherical insert bearing material Dimensional series Spherical ball inner Ø [mm] Spherical ball width [mm] Injection moulding
dB
d1
available (order example: PFL204-J4EM-20-14-SP)
● Lubrication and maintenance-free Metric
● Cost-effective
● Resistant to dirt L
Material:
Housing: Galvanised steel
m (stainless steel upon request)
dB h
®
d1 Spherical ball: iglidur J
®
(alternative iglidur J4)
A1
Ag
L

x2
m
h

A1
Technical data
Ag
®
Part No. Max. permissible axial load Max. permissible radial load Weight igubal spherical bearings
x2 Short-term Long-term Short-term Long-term
[N] [N] [N] [N] [g]
PFL203-J4EM-17-12-SPNew 1,500 750 3,000 1,500 83.6
PFL204- EM-20-14-SP 2,000 1,000 4,000 2,000 108.7 Easy to fit
PFL205- EM-25-15-SP 2,000 1,000 5,000 2,500 119.3
PFL206- EM-30-16-SP 2,000 1,000 7,000 3,500 180.3 Cost-effective
PFL207-JEM-35-17-SP New 2,500 1,250 8,000 4,000 242.6
PFL208-JEM-40-18-SP New 2,500 1,250 9,000 4,500 398.6 Chemical resistance

Dimensions [mm] Lightweight
Part No. d1 h L m A1 Ag x2
E10 +0.1 Very robust
PFL203-J4EM-17-12-SP New 17 81 59 63.5 4.0 14 7.1
PFL204- EM-20-14-SP 20 90 67 71.5 4.0 16 9.0
PFL205- EM-25-15-SP 25 95 71 76.0 4.0 18 9.0
PFL206- EM-30-16-SP 30 113 84 90.5 5.2 18 11.0
PFL207-JEM-35-17-SP New 35 122 94 100.0 5.2 20 11.0
PFL208-JEM-40-18-SP New 40 148 100 119.0 6.8 21 13.5

Can be combined with SRM fixing collars u Page 1012 ASEAN 09/2023 ASEAN 09/2023
