igubal igubal
®
®
®
®
spherical igubal spherical bearings | Product range igubal spherical bearings | Product range spherical
bearings bearings

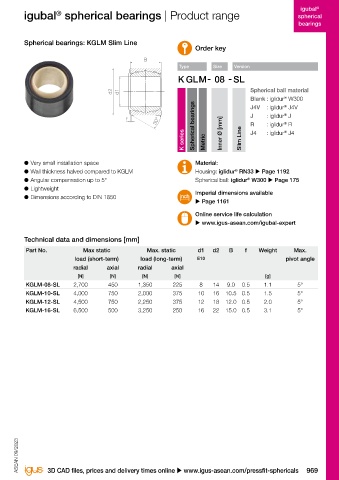

Spherical bearings: KGLM low-cost Spherical bearings: KGLM Slim Line
Order key Order key
B B
C Type Size Version Type Size Version

Spherical ball material d2 d1 Spherical ball material
Blank : iglidur W300
Blank : iglidur W300
®
®
®
®
d2 d1 Spherical bearings J4V : iglidur J4V J4V : iglidur J4V
: iglidur J
K series Metric Inner Ø [mm] Low-cost R : iglidur R f 30° R : iglidur R
J
: iglidur J
J
®
®
®
®
● Successor model of KGLM J4 : iglidur J4 Spherical bearings J4 : iglidur J4
®
®
● Variety of spherical ball 30° f K series Inner Ø [mm] Slim Line
materials Material: Metric
®
● Easy installation Housing: igumid G u Page 1190
®
● Cost-effective Spherical ball: iglidur W300 u Page 175 ● Very small installation space Material:
®
● Split housing Other spherical ball materials upon request ● Wall thickness halved compared to KGLM Housing: iglidur RN33 u Page 1192
u Page 993 ● Angular compensation up to 5° Spherical ball: iglidur W300 u Page 175
®
Technical data ● Lightweight Imperial dimensions available
Part No. Max. static load on the housing Max. tightening torque Weight ● Dimensions according to DIN 1850 u Page 1161
radial axial 29) through ball
[N] [N] [Nm] [g] Online service life calculation
KGLM-03-LC 550 200 2 0.5 u www.igus-asean.com/igubal-expert
KGLM-05-LC 1,300 500 5 1.0
KGLM-08-LC 2,700 1,200 12 2.9 Technical data and dimensions [mm]
KGLM-10-LC 4,000 1,400 20 4.3 Part No. Max static Max. static d1 d2 B f Weight Max.
KGLM-12-LC 5,400 1,500 30 6.9 load (short-term) load (long-term) E10 pivot angle
KGLM-14-LC 6,000 2,500 35 9.0 radial axial radial axial
KGLM-16-LC 8,000 3,000 40 12.7 [N] [N] [N] [N] [g]
KGLM-18-LC 9,000 4,000 45 16.6 KGLM-08-SL 2,700 450 1,350 225 8 14 9.0 0.5 1.1 5°
KGLM-20-LC 10,000 5,000 55 23.6 KGLM-10-SL 4,000 750 2,000 375 10 16 10.5 0.5 1.5 5°
KGLM-25-LC 13,600 7,500 65 38.9 KGLM-12-SL 4,500 750 2,250 375 12 18 12.0 0.5 2.0 5°
KGLM-30-LC 20,000 9,000 70 61.0 KGLM-16-SL 6,500 500 3,250 250 16 22 15.0 0.5 3.1 5°

29) The maximum static axial load is determined when fitted into a blind housing
Dimensions [mm]

Part No. d1 d2 30) B C f Max.
E10 pivot angle
KGLM-03-LC 3 10 6 4.5 0.5 32°
KGLM-05-LC 5 13 8 6.0 0.8 30°
KGLM-08-LC 8 19 12 9.0 0.8 29°
KGLM-10-LC 10 22 14 10.5 0.8 25°
KGLM-12-LC 12 26 16 12.0 0.8 25°
KGLM-14-LC 14 28 19 13.5 0.8 23°
KGLM-16-LC 16 32 21 15.0 0.8 23°
KGLM-18-LC 18 35 23 16.5 0.8 23°
KGLM-20-LC 20 40 25 18.0 0.8 23°
KGLM-25-LC 25 47 31 22.0 0.8 22°
KGLM-30-LC 30 55 37 25.0 1.0 22°

30) In press-fitted condition ASEAN 09/2023 ASEAN 09/2023
968 Online tools and more information u www.igus-asean.com/pressfit-sphericals 3D CAD files, prices and delivery times online u www.igus-asean.com/pressfit-sphericals 969
