igubal igubal
®
®
®
®
spherical igubal spherical bearings | Product range igubal clip bearings | Product range New spherical
bearings bearings

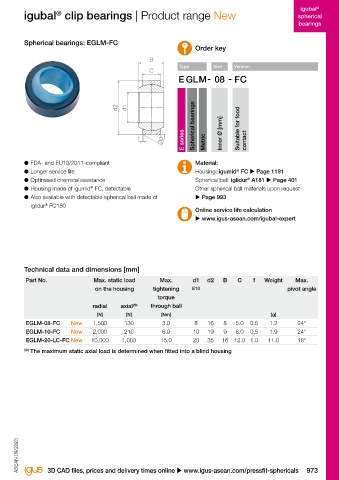

Spherical bearings: EGLM Spherical bearings: EGLM-FC
Order key Order key
B B
Type Size Type Size Version
C C

d2 d1 d2 d1

E series Metric E series Metric contact
f 30° Spherical bearings Inner Ø [mm] f 30° Spherical bearings Inner Ø [mm] Suitable for food

● Predecessor model of EGLM-LC Material: ● FDA- and EU10/2011-compliant Material:
®
®
● Compensation of misalignment and edge loads Housing: igumid G u Page 1190 ● Longer service life Housing: igumid FC u Page 1191
®
● Corrosion-resistant Spherical ball: ● Optimised chemical resistance Spherical ball: iglidur A181 u Page 401
®
● Vibration-dampening Spherical balls with 04-30mm diameters made of ● Housing made of igumid FC, detectable Other spherical ball materials upon request
®
● Excellent vibration dampening iglidur W300 u Page 175 ● Also available with detectable spherical ball made of u Page 993
®
● Suitable for rotating, oscillating and linear movements Spherical balls with 40mm and 80mm diameter iglidur FC180 Online service life calculation
made of iglidur J u Page 163
®
Other spherical ball materials upon request u www.igus-asean.com/igubal-expert
(Ø 04-12mm and 40mm) u Page 993
Online service life calculation
u www.igus-asean.com/igubal-expert

Technical data and dimensions [mm] Technical data and dimensions [mm]

Part No. Max. static load Max. d1 d2 B C f Weight Max. Part No. Max. static load Max. d1 d2 B C f Weight Max.
on the housing tightening E10 pivot angle on the housing tightening E10 pivot angle
torque torque
radial axial 29) through ball radial axial 29) through ball
[N] [N] [Nm] [g] [N] [N] [Nm] [g]
EGLM-04 600 50 1.0 4 12 5 3.0 0.5 0.4 37° EGLM-08-FC New 1,500 130 3.0 8 16 8 5.0 0.5 1.2 24°
EGLM-05 1,000 130 2.0 5 14 6 4.0 0.5 0.8 33° EGLM-10-FC New 2,000 210 6.0 10 19 9 6.0 0.5 1.9 24°
EGLM-06 1,200 150 2.5 6 14 6 4.0 0.5 0.9 27° EGLM-20-LC-FC New 10,000 1,000 15.0 20 35 16 12.0 1.0 11.0 18°
EGLM-08 1,800 175 7.0 8 16 8 5.0 0.5 1.2 24° 29) The maximum static axial load is determined when fitted into a blind housing
EGLM-10 2,500 400 14.0 10 19 9 6.0 0.5 1.9 24°
EGLM-12 3,800 650 25.0 12 22 10 7.0 0.5 2.8 21°
EGLM-15 5,500 1,000 30.0 15 26 12 9.0 0.5 4.5 21°
EGLM-16 6,000 1,150 32.0 16 28 13 9.5 0.5 6.0 21°
EGLM-17 6,300 1,200 35.0 17 30 14 10.0 1.0 6.9 21°
EGLM-20 9,000 1,400 40.0 20 35 16 12.0 1.0 11.0 18°
EGLM-25 14,000 2,900 55.0 25 42 20 16.0 1.0 20.0 16°
EGLM-30 17,000 4,000 70.0 30 47 22 18.0 1.0 26.0 13°
EGLM-40-J 22,500 2,500 80.0 40 62 28 22.0 1.0 57.0 15°
EGLM-80-J 50,000 11,300 – 80 120 55 45 2.0 400.0 18°
ASEAN 09/2023 ASEAN 09/2023
29) The maximum static axial load is determined when fitted into a blind housing

972 Online tools and more information u www.igus-asean.com/pressfit-sphericals 3D CAD files, prices and delivery times online u www.igus-asean.com/pressfit-sphericals 973
