iglidur  W300                                                                                                                                                                                                           iglidur  W300
                                                                                                                                                                                                                                    ®
            ®
          +90°C                                                                                                                                                                                                                   +90°C
          60MPa                                                                                                                                                                                                                   60MPa

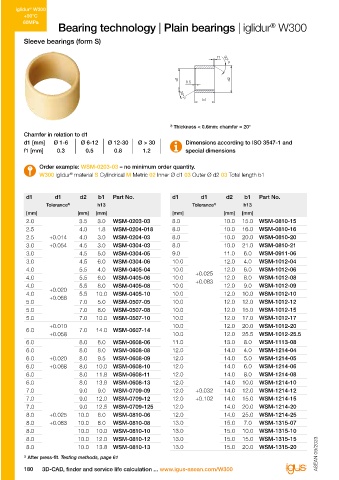

                      Bearing technology | Plain bearings | iglidur  W300                                                           Product range
                                                                                                ®
          Sleeve bearings (form S)                                                                                                  d1         d1      d2     b1   Part No.             d1        d1       d2    b1   Part No.

                                                                                                                                            Tolerance 3)      h13                              Tolerance 3)      h13
                                                                              f1  30°
                                                                                                                                    [mm]               [mm]  [mm]                       [mm]              [mm]  [mm]
                                                                                                                                    14.0               16.0   7.2  WSM-1416-07          22.0              25.0  30.0  WSM-2225-30
                                                                                                                                    14.0               16.0  10.0  WSM-1416-10          24.0              27.0  15.0  WSM-2427-15
                                                                d1  0.5           d2                                                14.0               16.0  15.0  WSM-1416-15          24.0              27.0  20.0  WSM-2427-20
                                                                                                                                    14.0               16.0  20.0  WSM-1416-20          24.0              27.0  25.0  WSM-2427-25
                                                                 30°
                                                                         b1                                                         14.0               16.0  25.0  WSM-1416-25          24.0              27.0  30.0  WSM-2427-30
                                                                                                                                    14.0               16.0  33.0  WSM-1416-33          25.0              28.0  12.0  WSM-2528-12
                                                                                                                                    15.0               17.0  10.0  WSM-1517-10          25.0              28.0  14.0  WSM-2528-14
                                                                                                                                    15.0               17.0  15.0  WSM-1517-15          25.0              28.0  15.0  WSM-2528-15
                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1                                                                                                 15.0               17.0  20.0  WSM-1517-20          25.0              28.0  20.0  WSM-2528-20
          d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30           Dimensions according to ISO 3547-1 and                            15.0              17.0  25.0  WSM-1517-25          25.0              28.0  25.0  WSM-2528-25
          f1 [mm]    0.3       0.5        0.8       1.2            special dimensions                                                16.0              18.0   7.0  WSM-1618-07          25.0              28.0  30.0  WSM-2528-30
                                                                                                                                     16.0              18.0   8.0  WSM-1618-08          25.0              28.0  50.0  WSM-2528-50
               Order example: WSM-0203-03 – no minimum order quantity.                                                               16.0    +0.032    18.0  11.5  WSM-1618-11          26.0              30.0  16.0  WSM-2630-16
               W300 iglidur  material S Cylindrical M Metric 02 Inner Ø d1 03 Outer Ø d2 03 Total length b1                          16.0    +0.102    18.0  12.0  WSM-1618-12          26.0    +0.040    30.0  25.0  WSM-2630-25
                          ®
                                                                                                                                     16.0              18.0  15.0  WSM-1618-15          28.0    +0.124    30.0  10.0  WSM-2830-10
                                                                                                                                     16.0              18.0  20.0  WSM-1618-20          28.0              31.0  10.0  WSM-2831-10
           d1        d1       d2    b1   Part No.             d1        d1       d2    b1   Part No.                                 16.0              18.0  25.0  WSM-1618-25          28.0              32.0  20.0  WSM-2832-20
                  Tolerance 3)      h13                              Tolerance 3)      h13                                           16.0              18.0  30.0  WSM-1618-30          28.0              32.0  25.0  WSM-2832-25
           [mm]              [mm]  [mm]                       [mm]              [mm]  [mm]                                           16.0              18.0  35.0  WSM-1618-35          28.0              32.0  30.0  WSM-2832-30
           2.0               3.5    3.0  WSM-0203-03          8.0               10.0  15.0  WSM-0810-15                              16.0              18.0  45.0  WSM-1618-45          30.0              34.0  16.0  WSM-3034-16
           2.5               4.0    1.8  WSM-0204-018         8.0               10.0  16.0  WSM-0810-16                              18.0              20.0  12.0  WSM-1820-12          30.0              34.0  20.0  WSM-3034-20
           2.5     +0.014    4.0    3.0  WSM-0204-03          8.0               10.0  20.0  WSM-0810-20                              18.0              20.0  15.0  WSM-1820-15          30.0              34.0  24.0  WSM-3034-24
           3.0     +0.054    4.5    3.0  WSM-0304-03          8.0               10.0  21.0  WSM-0810-21                              18.0              20.0  20.0  WSM-1820-20          30.0              34.0  25.0  WSM-3034-25
           3.0               4.5    5.0  WSM-0304-05          9.0               11.0   6.0  WSM-0911-06                              18.0              20.0  25.0  WSM-1820-25          30.0              34.0  30.0  WSM-3034-30
           3.0               4.5    6.0  WSM-0304-06          10.0              12.0   4.0  WSM-1012-04                              18.0              20.0  33.0  WSM-1820-33          30.0              34.0  36.0  WSM-3034-36
           4.0               5.5    4.0  WSM-0405-04          10.0    +0.025    12.0   6.0  WSM-1012-06                              18.0              20.0  35.0  WSM-1820-35          30.0              34.0  38.0  WSM-3034-38
           4.0               5.5    6.0  WSM-0405-06          10.0    +0.083    12.0   8.0  WSM-1012-08                              19.0              22.0  28.0  WSM-1922-28          30.0              34.0  40.0  WSM-3034-40
           4.0               5.5    8.0  WSM-0405-08          10.0              12.0   9.0  WSM-1012-09                              20.0              22.0  11.5  WSM-2022-11          30.0              34.0  45.0  WSM-3034-45
           4.0     +0.020    5.5   10.0  WSM-0405-10          10.0              12.0  10.0  WSM-1012-10                              20.0              22.0  12.0  WSM-2022-12          30.0              34.0  47.0  WSM-3034-47
                   +0.068
           5.0               7.0    5.0  WSM-0507-05          10.0              12.0  12.0  WSM-1012-12                              20.0              22.0  15.0  WSM-2022-15          32.0              36.0  20.0  WSM-3236-20
           5.0               7.0    8.0  WSM-0507-08          10.0              12.0  15.0  WSM-1012-15                              20.0              22.0  20.0  WSM-2022-20          32.0              36.0  25.0  WSM-3236-25
           5.0               7.0   10.0  WSM-0507-10          10.0              12.0  17.0  WSM-1012-17                              20.0              22.0  30.0  WSM-2022-30          32.0              36.0  30.0  WSM-3236-30
                   +0.010                                     10.0              12.0  20.0  WSM-1012-20                              20.0              23.0   8.0  WSM-2023-08          32.0              36.0  40.0  WSM-3236-40
           6.0               7.0   14.0  WSM-0607-14
                   +0.058                                     10.0              12.0  25.5  WSM-1012-25.5                            20.0              23.0  10.0  WSM-2023-10          35.0              39.0  20.0  WSM-3539-20
           6.0               8.0    6.0  WSM-0608-06          11.0              13.0   8.0  WSM-1113-08                              20.0              23.0  12.0  WSM-2023-12          35.0              39.0  30.0  WSM-3539-30
           6.0               8.0    8.0  WSM-0608-08          12.0              14.0   4.0  WSM-1214-04                              20.0              23.0  15.0  WSM-2023-15          35.0              39.0  40.0  WSM-3539-40
           6.0     +0.020    8.0    9.5  WSM-0608-09          12.0              14.0   5.0  WSM-1214-05                              20.0    +0.040    23.0  20.0  WSM-2023-20          35.0              39.0  50.0  WSM-3539-50
           6.0     +0.068    8.0   10.0  WSM-0608-10          12.0              14.0   6.0  WSM-1214-06                              20.0    +0.124    23.0  23.0  WSM-2023-23          35.0    +0.050    40.0   7.0  WSM-3540-07
           6.0               8.0   11.8  WSM-0608-11          12.0              14.0   8.0  WSM-1214-08                              20.0              23.0  25.0  WSM-2023-25          40.0    +0.150    44.0  20.0  WSM-4044-20
           6.0               8.0   13.8  WSM-0608-13          12.0              14.0  10.0  WSM-1214-10                              20.0              23.0  30.0  WSM-2023-30          40.0              44.0  30.0  WSM-4044-30
           7.0               9.0    9.0  WSM-0709-09          12.0    +0.032    14.0  12.0  WSM-1214-12                              22.0              24.0  15.0  WSM-2224-15          40.0              44.0  40.0  WSM-4044-40
           7.0               9.0   12.0  WSM-0709-12          12.0    +0.102    14.0   15.0  WSM-1214-15                             22.0              24.0  20.0  WSM-2224-20          40.0              44.0  50.0  WSM-4044-50
           7.0               9.0   12.5  WSM-0709-125         12.0              14.0   20.0  WSM-1214-20                             22.0              24.0  30.0  WSM-2224-30          45.0              50.0  20.0  WSM-4550-20
           8.0     +0.025    10.0   6.0  WSM-0810-06          12.0              14.0   25.0  WSM-1214-25                             22.0              24.0  35.0  WSM-2224-35          45.0              50.0  30.0  WSM-4550-30
           8.0     +0.083    10.0   8.0  WSM-0810-08          13.0              15.0   7.0  WSM-1315-07                              22.0              24.0  45.0  WSM-2224-45          45.0              50.0  40.0  WSM-4550-40
           8.0               10.0  10.0  WSM-0810-10          13.0              15.0   10.0  WSM-1315-10                             22.0              25.0  15.0  WSM-2225-15          45.0              50.0  50.0  WSM-4550-50
           8.0               10.0  12.0  WSM-0810-12          13.0              15.0   15.0  WSM-1315-15                             22.0              25.0  20.0  WSM-2225-20          50.0              55.0  20.0  WSM-5055-20
           8.0               10.0  13.8  WSM-0810-13          13.0              15.0   20.0  WSM-1315-20                             22.0              25.0  25.0  WSM-2225-25          50.0              55.0  30.0  WSM-5055-30

          3)  After press-fit. Testing methods, page 61                                                          ASEAN 09/2023   ASEAN 09/2023  3)  After press-fit. Testing methods, page 61
          180   3D-CAD, finder and service life calculation ... www.igus-asean.com/W300                                                                         Lubrication-free made easy ... from stock ... no minimum order quantity  181
