iglidur W300 iglidur W300
®
®
+90°C +90°C
60MPa 60MPa

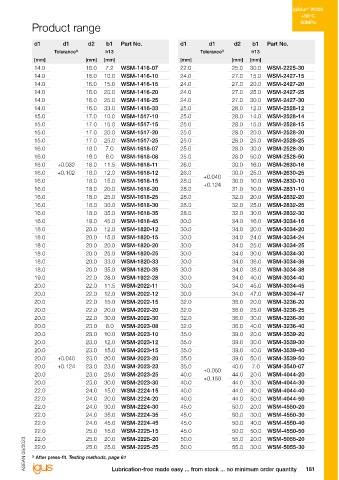

Bearing technology | Plain bearings | iglidur W300 Product range
®
Sleeve bearings (form S) d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.

Tolerance 3) h13 Tolerance 3) h13
f1 30°
[mm] [mm] [mm] [mm] [mm] [mm]
14.0 16.0 7.2 WSM-1416-07 22.0 25.0 30.0 WSM-2225-30
14.0 16.0 10.0 WSM-1416-10 24.0 27.0 15.0 WSM-2427-15
d1 0.5 d2 14.0 16.0 15.0 WSM-1416-15 24.0 27.0 20.0 WSM-2427-20
14.0 16.0 20.0 WSM-1416-20 24.0 27.0 25.0 WSM-2427-25
30°
b1 14.0 16.0 25.0 WSM-1416-25 24.0 27.0 30.0 WSM-2427-30
14.0 16.0 33.0 WSM-1416-33 25.0 28.0 12.0 WSM-2528-12
15.0 17.0 10.0 WSM-1517-10 25.0 28.0 14.0 WSM-2528-14
15.0 17.0 15.0 WSM-1517-15 25.0 28.0 15.0 WSM-2528-15
2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 15.0 17.0 20.0 WSM-1517-20 25.0 28.0 20.0 WSM-2528-20
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and 15.0 17.0 25.0 WSM-1517-25 25.0 28.0 25.0 WSM-2528-25
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions 16.0 18.0 7.0 WSM-1618-07 25.0 28.0 30.0 WSM-2528-30
16.0 18.0 8.0 WSM-1618-08 25.0 28.0 50.0 WSM-2528-50
Order example: WSM-0203-03 – no minimum order quantity. 16.0 +0.032 18.0 11.5 WSM-1618-11 26.0 30.0 16.0 WSM-2630-16
W300 iglidur material S Cylindrical M Metric 02 Inner Ø d1 03 Outer Ø d2 03 Total length b1 16.0 +0.102 18.0 12.0 WSM-1618-12 26.0 +0.040 30.0 25.0 WSM-2630-25
®
16.0 18.0 15.0 WSM-1618-15 28.0 +0.124 30.0 10.0 WSM-2830-10
16.0 18.0 20.0 WSM-1618-20 28.0 31.0 10.0 WSM-2831-10
d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No. 16.0 18.0 25.0 WSM-1618-25 28.0 32.0 20.0 WSM-2832-20
Tolerance 3) h13 Tolerance 3) h13 16.0 18.0 30.0 WSM-1618-30 28.0 32.0 25.0 WSM-2832-25
[mm] [mm] [mm] [mm] [mm] [mm] 16.0 18.0 35.0 WSM-1618-35 28.0 32.0 30.0 WSM-2832-30
2.0 3.5 3.0 WSM-0203-03 8.0 10.0 15.0 WSM-0810-15 16.0 18.0 45.0 WSM-1618-45 30.0 34.0 16.0 WSM-3034-16
2.5 4.0 1.8 WSM-0204-018 8.0 10.0 16.0 WSM-0810-16 18.0 20.0 12.0 WSM-1820-12 30.0 34.0 20.0 WSM-3034-20
2.5 +0.014 4.0 3.0 WSM-0204-03 8.0 10.0 20.0 WSM-0810-20 18.0 20.0 15.0 WSM-1820-15 30.0 34.0 24.0 WSM-3034-24
3.0 +0.054 4.5 3.0 WSM-0304-03 8.0 10.0 21.0 WSM-0810-21 18.0 20.0 20.0 WSM-1820-20 30.0 34.0 25.0 WSM-3034-25
3.0 4.5 5.0 WSM-0304-05 9.0 11.0 6.0 WSM-0911-06 18.0 20.0 25.0 WSM-1820-25 30.0 34.0 30.0 WSM-3034-30
3.0 4.5 6.0 WSM-0304-06 10.0 12.0 4.0 WSM-1012-04 18.0 20.0 33.0 WSM-1820-33 30.0 34.0 36.0 WSM-3034-36
4.0 5.5 4.0 WSM-0405-04 10.0 +0.025 12.0 6.0 WSM-1012-06 18.0 20.0 35.0 WSM-1820-35 30.0 34.0 38.0 WSM-3034-38
4.0 5.5 6.0 WSM-0405-06 10.0 +0.083 12.0 8.0 WSM-1012-08 19.0 22.0 28.0 WSM-1922-28 30.0 34.0 40.0 WSM-3034-40
4.0 5.5 8.0 WSM-0405-08 10.0 12.0 9.0 WSM-1012-09 20.0 22.0 11.5 WSM-2022-11 30.0 34.0 45.0 WSM-3034-45
4.0 +0.020 5.5 10.0 WSM-0405-10 10.0 12.0 10.0 WSM-1012-10 20.0 22.0 12.0 WSM-2022-12 30.0 34.0 47.0 WSM-3034-47
+0.068
5.0 7.0 5.0 WSM-0507-05 10.0 12.0 12.0 WSM-1012-12 20.0 22.0 15.0 WSM-2022-15 32.0 36.0 20.0 WSM-3236-20
5.0 7.0 8.0 WSM-0507-08 10.0 12.0 15.0 WSM-1012-15 20.0 22.0 20.0 WSM-2022-20 32.0 36.0 25.0 WSM-3236-25
5.0 7.0 10.0 WSM-0507-10 10.0 12.0 17.0 WSM-1012-17 20.0 22.0 30.0 WSM-2022-30 32.0 36.0 30.0 WSM-3236-30
+0.010 10.0 12.0 20.0 WSM-1012-20 20.0 23.0 8.0 WSM-2023-08 32.0 36.0 40.0 WSM-3236-40
6.0 7.0 14.0 WSM-0607-14
+0.058 10.0 12.0 25.5 WSM-1012-25.5 20.0 23.0 10.0 WSM-2023-10 35.0 39.0 20.0 WSM-3539-20
6.0 8.0 6.0 WSM-0608-06 11.0 13.0 8.0 WSM-1113-08 20.0 23.0 12.0 WSM-2023-12 35.0 39.0 30.0 WSM-3539-30
6.0 8.0 8.0 WSM-0608-08 12.0 14.0 4.0 WSM-1214-04 20.0 23.0 15.0 WSM-2023-15 35.0 39.0 40.0 WSM-3539-40
6.0 +0.020 8.0 9.5 WSM-0608-09 12.0 14.0 5.0 WSM-1214-05 20.0 +0.040 23.0 20.0 WSM-2023-20 35.0 39.0 50.0 WSM-3539-50
6.0 +0.068 8.0 10.0 WSM-0608-10 12.0 14.0 6.0 WSM-1214-06 20.0 +0.124 23.0 23.0 WSM-2023-23 35.0 +0.050 40.0 7.0 WSM-3540-07
6.0 8.0 11.8 WSM-0608-11 12.0 14.0 8.0 WSM-1214-08 20.0 23.0 25.0 WSM-2023-25 40.0 +0.150 44.0 20.0 WSM-4044-20
6.0 8.0 13.8 WSM-0608-13 12.0 14.0 10.0 WSM-1214-10 20.0 23.0 30.0 WSM-2023-30 40.0 44.0 30.0 WSM-4044-30
7.0 9.0 9.0 WSM-0709-09 12.0 +0.032 14.0 12.0 WSM-1214-12 22.0 24.0 15.0 WSM-2224-15 40.0 44.0 40.0 WSM-4044-40
7.0 9.0 12.0 WSM-0709-12 12.0 +0.102 14.0 15.0 WSM-1214-15 22.0 24.0 20.0 WSM-2224-20 40.0 44.0 50.0 WSM-4044-50
7.0 9.0 12.5 WSM-0709-125 12.0 14.0 20.0 WSM-1214-20 22.0 24.0 30.0 WSM-2224-30 45.0 50.0 20.0 WSM-4550-20
8.0 +0.025 10.0 6.0 WSM-0810-06 12.0 14.0 25.0 WSM-1214-25 22.0 24.0 35.0 WSM-2224-35 45.0 50.0 30.0 WSM-4550-30
8.0 +0.083 10.0 8.0 WSM-0810-08 13.0 15.0 7.0 WSM-1315-07 22.0 24.0 45.0 WSM-2224-45 45.0 50.0 40.0 WSM-4550-40
8.0 10.0 10.0 WSM-0810-10 13.0 15.0 10.0 WSM-1315-10 22.0 25.0 15.0 WSM-2225-15 45.0 50.0 50.0 WSM-4550-50
8.0 10.0 12.0 WSM-0810-12 13.0 15.0 15.0 WSM-1315-15 22.0 25.0 20.0 WSM-2225-20 50.0 55.0 20.0 WSM-5055-20
8.0 10.0 13.8 WSM-0810-13 13.0 15.0 20.0 WSM-1315-20 22.0 25.0 25.0 WSM-2225-25 50.0 55.0 30.0 WSM-5055-30

3) After press-fit. Testing methods, page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods, page 61
180 3D-CAD, finder and service life calculation ... www.igus-asean.com/W300 Lubrication-free made easy ... from stock ... no minimum order quantity 181
