iglidur R iglidur R
®
®
+90°C +90°C
23MPa 23MPa
Bearing technology | Plain bearings | iglidur R Bearing technology | Plain bearings | iglidur R
®
®

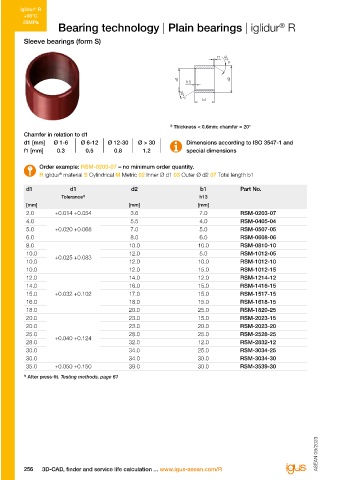

Sleeve bearings (form S) Flange bearings (form F)
r max. 0.5
f1 30° f1 30°

d1 0.5 d2 d3 d1 d2

30°
b1 b2
b1

2) Thickness < 0.6mm: chamfer = 20° 2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1 Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions f1 [mm] 0.3 0.5 0.8 special dimensions

Order example: RSM-0203-07 – no minimum order quantity. Order example: RFM-0405-03 – no minimum order quantity.
R iglidur material S Cylindrical M Metric 02 Inner Ø d1 03 Outer Ø d2 07 Total length b1 R iglidur material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 03 Total length b1
®
®
d1 d1 d2 b1 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
2.0 +0.014 +0.054 3.6 7.0 RSM-0203-07 4.0 5.5 9.5 3.0 0.75 RFM-0405-03
4.0 5.5 4.0 RSM-0405-04 4.0 +0.020 +0.068 5.5 9.5 4.0 0.75 RFM-0405-04
5.0 +0.020 +0.068 7.0 5.0 RSM-0507-05 5.0 7.0 11.0 5.0 1.00 RFM-0507-05
6.0 8.0 6.0 RSM-0608-06 6.0 8.0 12.0 6.0 1.00 RFM-0608-06
8.0 10.0 10.0 RSM-0810-10 8.0 10.0 15.0 5.0 1.00 RFM-0810-05
10.0 +0.025 +0.083 12.0 5.0 RSM-1012-05 8.0 +0.025 +0.083 10.0 15.0 10.0 1.00 RFM-0810-10
10.0 12.0 10.0 RSM-1012-10 10.0 12.0 18.0 10.0 1.00 RFM-1012-10
10.0 12.0 15.0 RSM-1012-15 10.0 12.0 18.0 18.0 1.00 RFM-1012-18
12.0 14.0 12.0 RSM-1214-12 12.0 14.0 20.0 10.0 1.00 RFM-1214-10
14.0 16.0 15.0 RSM-1416-15 12.0 14.0 20.0 12.0 1.00 RFM-1214-12
15.0 +0.032 +0.102 17.0 15.0 RSM-1517-15 14.0 +0.032 +0.102 16.0 22.0 17.0 1.00 RFM-1416-17
16.0 18.0 15.0 RSM-1618-15 15.0 17.0 23.0 17.0 1.00 RFM-1517-17
18.0 20.0 25.0 RSM-1820-25 16.0 18.0 24.0 17.0 1.00 RFM-1618-17
20.0 23.0 15.0 RSM-2023-15 18.0 20.0 26.0 17.0 1.00 RFM-1820-17
20.0 23.0 20.0 RSM-2023-20 20.0 23.0 30.0 21.5 1.50 RFM-2023-21
25.0 +0.040 +0.124 28.0 25.0 RSM-2528-25 22.0 +0.040 +0.124 25.0 29.0 4.5 1.50 RFM-222529-045
28.0 32.0 12.0 RSM-2832-12 25.0 28.0 35.0 21.5 1.50 RFM-2528-21
30.0 34.0 25.0 RSM-3034-25 3) After press-fit. Testing methods, page 61
30.0 34.0 30.0 RSM-3034-30
35.0 +0.050 +0.150 39.0 30.0 RSM-3539-30 Available from stock Ordering note
Detailed information about delivery time online. Our prices are scaled according to order
3) After press-fit. Testing methods, page 61
www.igus-asean.com/24 quantities, current prices can be found online.
Order online Discount scaling
including delivery times, prices, online tools
www.igus-asean.com/R 1-9 50-99 500-999
10-24 100-199 1,000-2,499
25-49 200-499 2,500-4,999

No minimum order value.
ASEAN 09/2023 ASEAN 09/2023 Free shipping within Germany for orders
No low-quantity surcharges.
above €150.
