iglidur  R                                                                                                                                                                                                              iglidur  R
             ®
                                                                                                                                                                                                                                      ®
          +90°C                                                                                                                                                                                                                   +90°C
          23MPa                                                                                                                                                                                                                   23MPa
                      Bearing technology | Plain bearings | iglidur  R                                                              Bearing technology | Plain bearings | iglidur  R
                                                                                                                                                                                                                 ®
                                                                                                    ®

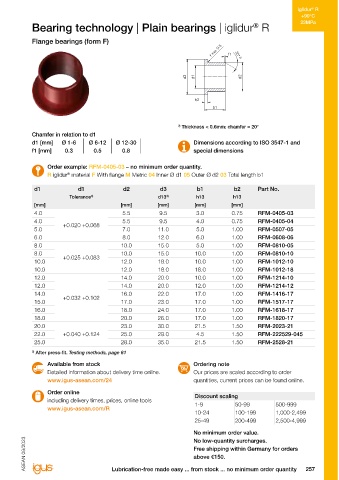

          Sleeve bearings (form S)                                                                                                  Flange bearings (form F)
                                                                                                                                                                                                   r max. 0.5
                                                                              f1  30°                                                                                                                    f1  30°



                                                                d1  0.5           d2                                                                                                      d3  d1             d2


                                                                 30°
                                                                         b1                                                                                                                  b2
                                                                                                                                                                                                   b1


                                                             2)  Thickness < 0.6mm: chamfer = 20°                                                                                      2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1                                                                                                 Chamfer in relation to d1
          d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30           Dimensions according to ISO 3547-1 and                           d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30                    Dimensions according to ISO 3547-1 and
          f1 [mm]    0.3       0.5        0.8       1.2            special dimensions                                               f1 [mm]    0.3       0.5       0.8                      special dimensions


               Order example: RSM-0203-07 – no minimum order quantity.                                                                   Order example: RFM-0405-03 – no minimum order quantity.
               R iglidur  material S Cylindrical M Metric 02 Inner Ø d1 03 Outer Ø d2 07 Total length b1                                 R iglidur  material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 03 Total length b1
                                                                                                                                                ®
                      ®
           d1             d1                   d2                       b1            Part No.                                      d1              d1              d2           d3           b1           b2      Part No.
                       Tolerance 3)                                    h13                                                                       Tolerance 3)                   d13 3)       h13          h13
           [mm]                                [mm]                    [mm]                                                         [mm]                           [mm]         [mm]         [mm]         [mm]
           2.0       +0.014 +0.054             3.6                     7.0            RSM-0203-07                                   4.0                            5.5          9.5          3.0          0.75     RFM-0405-03
           4.0                                 5.5                     4.0            RSM-0405-04                                   4.0        +0.020 +0.068       5.5          9.5          4.0          0.75     RFM-0405-04
           5.0       +0.020 +0.068             7.0                     5.0            RSM-0507-05                                   5.0                            7.0          11.0         5.0          1.00     RFM-0507-05
           6.0                                 8.0                     6.0            RSM-0608-06                                   6.0                            8.0          12.0         6.0          1.00     RFM-0608-06
           8.0                                 10.0                    10.0           RSM-0810-10                                   8.0                            10.0         15.0         5.0          1.00     RFM-0810-05
           10.0      +0.025 +0.083             12.0                    5.0            RSM-1012-05                                   8.0        +0.025 +0.083       10.0         15.0         10.0         1.00     RFM-0810-10
           10.0                                12.0                    10.0           RSM-1012-10                                   10.0                           12.0         18.0         10.0         1.00     RFM-1012-10
           10.0                                12.0                    15.0           RSM-1012-15                                   10.0                           12.0         18.0         18.0         1.00     RFM-1012-18
           12.0                                14.0                    12.0           RSM-1214-12                                   12.0                           14.0         20.0         10.0         1.00     RFM-1214-10
           14.0                                16.0                    15.0           RSM-1416-15                                   12.0                           14.0         20.0         12.0         1.00     RFM-1214-12
           15.0      +0.032 +0.102             17.0                    15.0           RSM-1517-15                                   14.0       +0.032 +0.102       16.0         22.0         17.0         1.00     RFM-1416-17
           16.0                                18.0                    15.0           RSM-1618-15                                   15.0                           17.0         23.0         17.0         1.00     RFM-1517-17
           18.0                                20.0                    25.0           RSM-1820-25                                   16.0                           18.0         24.0         17.0         1.00     RFM-1618-17
           20.0                                23.0                    15.0           RSM-2023-15                                   18.0                           20.0         26.0         17.0         1.00     RFM-1820-17
           20.0                                23.0                    20.0           RSM-2023-20                                   20.0                           23.0         30.0         21.5         1.50     RFM-2023-21
           25.0      +0.040 +0.124             28.0                    25.0           RSM-2528-25                                   22.0       +0.040 +0.124       25.0         29.0         4.5          1.50     RFM-222529-045
           28.0                                32.0                    12.0           RSM-2832-12                                   25.0                           28.0         35.0         21.5         1.50     RFM-2528-21
           30.0                                34.0                    25.0           RSM-3034-25                                   3)  After press-fit. Testing methods, page 61
           30.0                                34.0                    30.0           RSM-3034-30
           35.0      +0.050 +0.150             39.0                    30.0           RSM-3539-30                                        Available from stock                               Ordering note
                                                                                                                                         Detailed information about delivery time online.   Our prices are scaled according to order
          3)  After press-fit. Testing methods, page 61
                                                                                                                                         www.igus-asean.com/24                              quantities, current prices can be found online.
                                                                                                                                         Order online                                        Discount scaling
                                                                                                                                         including delivery times, prices, online tools
                                                                                                                                         www.igus-asean.com/R                                1-9           50-99         500-999
                                                                                                                                                                                             10-24         100-199       1,000-2,499
                                                                                                                                                                                             25-49         200-499       2,500-4,999

                                                                                                                                                                                            No minimum order value.
                                                                                                                 ASEAN 09/2023   ASEAN 09/2023                                              Free shipping within Germany for orders
                                                                                                                                                                                            No low-quantity surcharges.
                                                                                                                                                                                            above €150.
