iglidur Z iglidur Z
®
®
+250°C +250°C
150MPa 150MPa

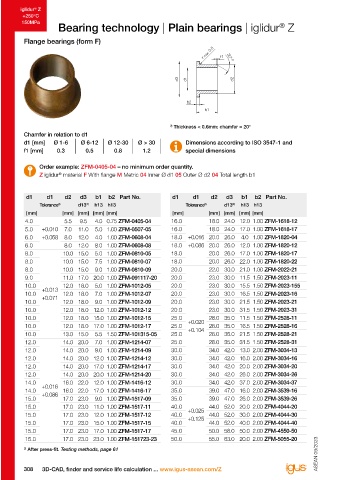

Bearing technology | Plain bearings | iglidur Z Product range
®
Flange bearings (form F) d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
r max. 0.5 Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
f1
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
30°
+0.025 60.0 65.0 73.0 50.0 2.00 ZFM-6065-50
50.0 55.0 63.0 50.0 2.00 ZFM-5055-50 +0.030
d3 d1 d2 +0.125 75.0 +0.150 80.0 88.0 50.0 2.50 ZFM-7580-50
75.0 80.0 94.0 65.0 2.00 ZFM-758094-65
3) After press-fit. Testing methods, page 61
b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: ZFM-0405-04 – no minimum order quantity.
Z iglidur material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
®

d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
4.0 5.5 9.5 4.0 0.75 ZFM-0405-04 16.0 18.0 24.0 12.0 1.00 ZFM-1618-12
5.0 +0.010 7.0 11.0 5.0 1.00 ZFM-0507-05 16.0 18.0 24.0 17.0 1.00 ZFM-1618-17
6.0 +0.058 8.0 12.0 4.0 1.00 ZFM-0608-04 18.0 +0.016 20.0 26.0 4.0 1.00 ZFM-1820-04
6.0 8.0 12.0 8.0 1.00 ZFM-0608-08 18.0 +0.086 20.0 26.0 12.0 1.00 ZFM-1820-12
8.0 10.0 15.0 5.0 1.00 ZFM-0810-05 18.0 20.0 26.0 17.0 1.00 ZFM-1820-17
8.0 10.0 15.0 7.5 1.00 ZFM-0810-07 18.0 20.0 26.0 22.0 1.00 ZFM-1820-22
8.0 10.0 15.0 9.0 1.00 ZFM-0810-09 20.0 22.0 30.0 21.0 1.00 ZFM-2022-21
9.0 11.0 17.0 20.0 1.00 ZFM-091117-20 20.0 23.0 30.0 11.5 1.50 ZFM-2023-11
10.0 12.0 18.0 5.0 1.00 ZFM-1012-05 20.0 23.0 30.0 15.5 1.50 ZFM-2023-155
10.0 +0.013 12.0 18.0 7.0 1.00 ZFM-1012-07 20.0 23.0 30.0 16.5 1.50 ZFM-2023-16
+0.071
10.0 12.0 18.0 9.0 1.00 ZFM-1012-09 20.0 23.0 30.0 21.5 1.50 ZFM-2023-21
10.0 12.0 18.0 12.0 1.00 ZFM-1012-12 20.0 23.0 30.0 31.5 1.50 ZFM-2023-31
10.0 12.0 18.0 15.0 1.00 ZFM-1012-15 25.0 +0.020 28.0 35.0 11.5 1.50 ZFM-2528-11
10.0 12.0 18.0 17.0 1.00 ZFM-1012-17 25.0 +0.104 28.0 35.0 16.5 1.50 ZFM-2528-16
10.0 13.0 15.0 5.5 1.50 ZFM-101315-05 25.0 28.0 35.0 21.5 1.50 ZFM-2528-21
12.0 14.0 20.0 7.0 1.00 ZFM-1214-07 25.0 28.0 35.0 31.5 1.50 ZFM-2528-31
12.0 14.0 20.0 9.0 1.00 ZFM-1214-09 30.0 34.0 42.0 13.0 2.00 ZFM-3034-13
12.0 14.0 20.0 12.0 1.00 ZFM-1214-12 30.0 34.0 42.0 16.0 2.00 ZFM-3034-16
12.0 14.0 20.0 17.0 1.00 ZFM-1214-17 30.0 34.0 42.0 20.0 2.00 ZFM-3034-20 Available from stock Ordering note
12.0 14.0 20.0 20.0 1.00 ZFM-1214-20 30.0 34.0 42.0 26.0 2.00 ZFM-3034-26 Detailed information about delivery time online. Our prices are scaled according to order
14.0 +0.016 16.0 22.0 12.0 1.00 ZFM-1416-12 30.0 34.0 42.0 37.0 2.00 ZFM-3034-37 www.igus-asean.com/24 quantities, current prices can be found online.
14.0 +0.086 16.0 22.0 17.0 1.00 ZFM-1416-17 35.0 39.0 47.0 16.0 2.00 ZFM-3539-16 Order online
15.0 17.0 23.0 9.0 1.00 ZFM-1517-09 35.0 39.0 47.0 26.0 2.00 ZFM-3539-26 including delivery times, prices, online tools Discount scaling
15.0 17.0 23.0 11.0 1.00 ZFM-1517-11 40.0 +0.025 44.0 52.0 20.0 2.00 ZFM-4044-20 www.igus-asean.com/Z 1-9 50-99 500-999
15.0 17.0 23.0 12.0 1.00 ZFM-1517-12 40.0 +0.125 44.0 52.0 30.0 2.00 ZFM-4044-30 10-24 100-199 1,000-2,499
15.0 17.0 23.0 15.0 1.00 ZFM-1517-15 40.0 44.0 52.0 40.0 2.00 ZFM-4044-40 25-49 200-499 2,500-4,999
15.0 17.0 23.0 17.0 1.00 ZFM-1517-17 45.0 50.0 58.0 50.0 2.00 ZFM-4550-50 No minimum order value.
15.0 17.0 23.0 23.0 1.00 ZFM-151723-23 50.0 55.0 63.0 20.0 2.00 ZFM-5055-20 No low-quantity surcharges.
ASEAN 09/2023 ASEAN 09/2023 above €150.
3) After press-fit. Testing methods, page 61 Free shipping within Germany for orders
