iglidur Z
®
+250°C
150MPa

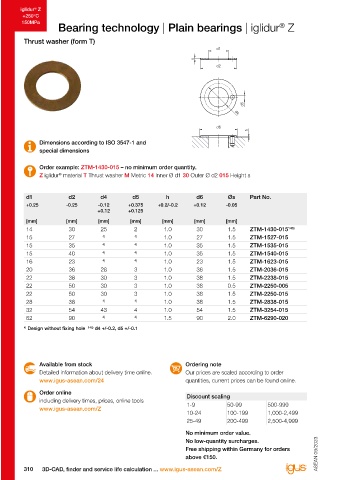

Bearing technology | Plain bearings | iglidur Z
®
Thrust washer (form T)
d1

s
d2

d5

d4
d6
h
Dimensions according to ISO 3547-1 and
special dimensions

Order example: ZTM-1430-015 – no minimum order quantity.
Z iglidur material T Thrust washer M Metric 14 Inner Ø d1 30 Outer Ø d2 015 Height s The high-temperature specialist
®
up to +250°C
d1 d2 d4 d5 h d6 Øs Part No.
+0.25 -0.25 -0.12 +0.375 +0.2/-0.2 +0.12 -0.05
+0.12 +0.125 Up to six times more wear-resistant
[mm] [mm] [mm] [mm] [mm] [mm] [mm]
14 30 25 2 1.0 30 1.5 ZTM-1430-015 146) ®
15 27 4) 4) 1.0 27 1.5 ZTM-1527-015 than iglidur X
15 35 4) 4) 1.0 35 1.5 ZTM-1535-015
15 40 4) 4) 1.0 35 1.5 ZTM-1540-015 iglidur X6
®
16 23 4) 4) 1.0 23 1.5 ZTM-1623-015
20 36 28 3 1.0 36 1.5 ZTM-2036-015
22 38 30 3 1.0 38 1.5 ZTM-2238-015
22 50 30 3 1.0 38 0.5 ZTM-2250-005
22 50 30 3 1.0 38 1.5 ZTM-2250-015 When to use it?
28 38 4) 4) 1.0 38 1.5 ZTM-2838-015 ● When temperatures are higher than +150°C
®
32 54 43 4 1.0 54 1.5 ZTM-3254-015 ● When the wear resistance of iglidur X in pivoting and rotating applications is not sufficient
®
62 90 4) 4) 1.5 90 2.0 ZTM-6290-020 ● When the press-fit should be improved over iglidur X
● When high media resistance is required
4) Design without fixing hole 146) d4 +/-0.2, d5 +/-0.1
● When a bearing which is free of PTFE is required

Available from stock Ordering note When not to use it?
Detailed information about delivery time online. Our prices are scaled according to order ● When a cost-effective universal plain bearing is required
www.igus-asean.com/24 quantities, current prices can be found online. iglidur G
®
● When a plain bearing for underwater use is required
Order online Discount scaling iglidur UW500, iglidur H370
®
®
including delivery times, prices, online tools 1-9 50-99 500-999 When a wear-resistant high-temperature plain bearing for linear motion is required
www.igus-asean.com/Z ●
®
10-24 100-199 1,000-2,499 iglidur Z
25-49 200-499 2,500-4,999
No minimum order value.
No low-quantity surcharges.
Free shipping within Germany for orders
above €150. ASEAN 09/2023 ASEAN 09/2023
310 3D-CAD, finder and service life calculation ... www.igus-asean.com/Z
