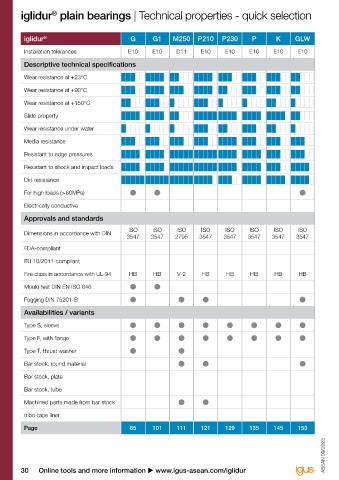

iglidur plain bearings | Technical properties - quick selection
®

iglidur ® G G1 M250 P210 P230 P K GLW J W300 J3 J3B J350 J260 W360 L250 L350 L500 R D
Installation tolerances E10 E10 D11 E10 E10 E10 E10 E10 E10 E10 E10 E10 F10 E10 E10 E10 F10 F10 E10 E10

Descriptive technical specifications

Wear resistance at +23°C

Wear resistance at +90°C

Wear resistance at +150°C

Slide property
Wear resistance under water

Media resistance

Resistant to edge pressures

Resistant to shock and impact loads

Dirt resistance

For high loads (> 60MPa)
Electrically conductive

Approvals and standards

ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO
Dimensions in accordance with DIN
3547 3547 2795 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547
FDA-compliant
EU 10/2011-compliant

Fire class in accordance with UL-94 HB HB V-2 HB HB HB HB HB HB HB HB HB V-0 V-2 HB HB V-0 V-0 HB HB

Mould test DIN EN ISO 846

Fogging DIN 75201-B

Availabilities / variants
Type S, sleeve

Type F, with flange

Type T, thrust washer

Bar stock, round material

Bar stock, plate

Bar stock, tube
Machined parts made from bar stock

tribo-tape liner

Page 85 101 111 121 129 135 145 153 163 175 187 195 203 211 219 227 235 243 251 259
