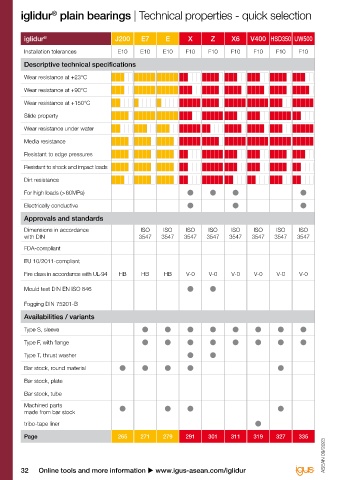

iglidur plain bearings | Technical properties - quick selection
®

iglidur ® J200 E7 E X Z X6 V400 HSD350 UW500 H1 H370 H C500 H2 H3 H5 A181 A350 A500 A180 A200 A160
Installation tolerances E10 E10 E10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 E10 F10 F10 E10 D11 E10

Descriptive technical specifications

Wear resistance at +23°C

Wear resistance at +90°C

Wear resistance at +150°C

Slide property
Wear resistance under water

Media resistance

Resistant to edge pressures

Resistant to shock and impact loads

Dirt resistance

For high loads (> 60MPa)
Electrically conductive

Approvals and standards

Dimensions in accordance ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO ISO
with DIN 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 3547 2795 3547

FDA-compliant
EU 10/2011-compliant

Fire class in accordance with UL-94 HB HB HB V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0 HB V-0 V-1 HB V-2 HB

Mould test DIN EN ISO 846

Fogging DIN 75201-B
Availabilities / variants

Type S, sleeve
Type F, with flange

Type T, thrust washer

Bar stock, round material

Bar stock, plate

Bar stock, tube
Machined parts
made from bar stock
tribo-tape liner

Page 265 271 279 291 301 311 319 327 335 345 353 363 371 379 385 391 401 409 417 425 433 443
