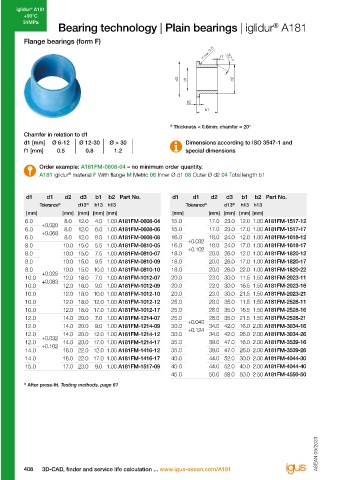

Page 410 - IGUS Bearing

iglidur A181
®
+90°C
31MPa
Bearing technology | Plain bearings | iglidur A181
®
Flange bearings (form F)
r max. 0.5 f1 30°

d3 d1 d2

b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.5 0.8 1.2 special dimensions

Order example: A181FM-0608-04 – no minimum order quantity.
A181 iglidur material F With flange M Metric 06 Inner Ø d1 08 Outer Ø d2 04 Total length b1 The endurance runner at higher
®
temperatures in the food sector
d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] Compliant with Regulation (EU)
6.0 +0.020 8.0 12.0 4.0 1.00 A181FM-0608-04 15.0 17.0 23.0 12.0 1.00 A181FM-1517-12
6.0 +0.068 8.0 12.0 6.0 1.00 A181FM-0608-06 15.0 17.0 23.0 17.0 1.00 A181FM-1517-17
6.0 8.0 12.0 8.0 1.00 A181FM-0608-08 16.0 +0.032 18.0 24.0 12.0 1.00 A181FM-1618-12 No. 10/2011 and FDA guidelines
8.0 10.0 15.0 5.5 1.00 A181FM-0810-05 16.0 +0.102 18.0 24.0 17.0 1.00 A181FM-1618-17
8.0 10.0 15.0 7.5 1.00 A181FM-0810-07 18.0 20.0 26.0 12.0 1.00 A181FM-1820-12 iglidur A350
®
8.0 10.0 15.0 9.5 1.00 A181FM-0810-09 18.0 20.0 26.0 17.0 1.00 A181FM-1820-17
8.0 +0.025 10.0 15.0 10.0 1.00 A181FM-0810-10 18.0 20.0 26.0 22.0 1.00 A181FM-1820-22
10.0 +0.083 12.0 18.0 7.0 1.00 A181FM-1012-07 20.0 23.0 30.0 11.5 1.50 A181FM-2023-11
10.0 12.0 18.0 9.0 1.00 A181FM-1012-09 20.0 23.0 30.0 16.5 1.50 A181FM-2023-16
10.0 12.0 18.0 10.0 1.00 A181FM-1012-10 20.0 23.0 30.0 21.5 1.50 A181FM-2023-21 When to use it?
10.0 12.0 18.0 12.0 1.00 A181FM-1012-12 25.0 28.0 35.0 11.5 1.50 A181FM-2528-11 ● When FDA compliance is required
10.0 12.0 18.0 17.0 1.00 A181FM-1012-17 25.0 28.0 35.0 16.5 1.50 A181FM-2528-16 ● When wear resistance and FDA-compliance are necessary at high loads
12.0 14.0 20.0 7.0 1.00 A181FM-1214-07 25.0 +0.040 28.0 35.0 21.5 1.50 A181FM-2528-21 ● When the bearing is used in acid environments
12.0 14.0 20.0 9.0 1.00 A181FM-1214-09 30.0 +0.124 34.0 42.0 16.0 2.00 A181FM-3034-16
12.0 +0.032 14.0 20.0 12.0 1.00 A181FM-1214-12 30.0 34.0 42.0 26.0 2.00 A181FM-3034-26
12.0 +0.102 14.0 20.0 17.0 1.00 A181FM-1214-17 35.0 39.0 47.0 16.0 2.00 A181FM-3539-16
14.0 16.0 22.0 12.0 1.00 A181FM-1416-12 35.0 39.0 47.0 26.0 2.00 A181FM-3539-26 When not to use it?
14.0 16.0 22.0 17.0 1.00 A181FM-1416-17 40.0 44.0 52.0 30.0 2.00 A181FM-4044-30 ● When temperatures are continuously higher than +180°C
®
15.0 17.0 23.0 9.0 1.00 A181FM-1517-09 40.0 44.0 52.0 40.0 2.00 A181FM-4044-40 iglidur A500
45.0 50.0 58.0 50.0 2.50 A181FM-4550-50 ● When the maximum wear resistance is necessary
iglidur J
®
3) After press-fit. Testing methods, page 61
● When a cost-effective FDA-compliant plain bearing is required
iglidur A200, iglidur A180
®
®
● For high speeds
iglidur J
®

ASEAN 09/2023 ASEAN 09/2023

408 3D-CAD, finder and service life calculation ... www.igus-asean.com/A181
