iglidur  A181
            ®
          +90°C
          31MPa
                      Bearing technology | Plain bearings | iglidur  A181
                                                                                                 ®
          Flange bearings (form F)
                                                                         r max. 0.5  f1  30°





                                                                d3  d1             d2



                                                                   b2
                                                                         b1

                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1
          d1 [mm]  Ø 6-12    Ø 12-30    Ø > 30                     Dimensions according to ISO 3547-1 and
          f1 [mm]    0.5       0.8        1.2                      special dimensions


               Order example: A181FM-0608-04 – no minimum order quantity.

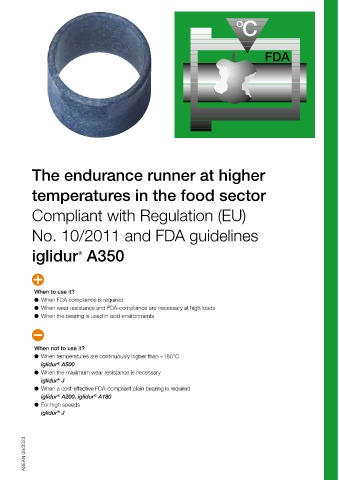

               A181 iglidur  material F With flange M Metric 06 Inner Ø d1 08 Outer Ø d2 04 Total length b1                         The endurance runner at higher
                         ®
                                                                                                                                    temperatures in the food sector
           d1     d1    d2    d3   b1   b2 Part No.           d1     d1    d2    d3   b1   b2 Part No.
               Tolerance 3)  d13 3)  h13  h13                      Tolerance 3)  d13 3)  h13  h13
           [mm]        [mm] [mm] [mm] [mm]                    [mm]         [mm] [mm] [mm] [mm]                                      Compliant with Regulation (EU)
          6.0   +0.020   8.0  12.0  4.0 1.00 A181FM-0608-04   15.0         17.0 23.0 12.0 1.00 A181FM-1517-12
          6.0   +0.068  8.0  12.0  6.0 1.00 A181FM-0608-06    15.0         17.0 23.0 17.0 1.00 A181FM-1517-17
          6.0           8.0  12.0  8.0 1.00 A181FM-0608-08    16.0  +0.032   18.0 24.0 12.0 1.00 A181FM-1618-12                     No. 10/2011 and FDA guidelines
          8.0           10.0 15.0  5.5 1.00 A181FM-0810-05    16.0  +0.102  18.0 24.0 17.0 1.00 A181FM-1618-17
          8.0           10.0 15.0  7.5 1.00 A181FM-0810-07    18.0         20.0 26.0 12.0 1.00 A181FM-1820-12                       iglidur  A350
                                                                                                                                                    ®
          8.0           10.0 15.0  9.5 1.00 A181FM-0810-09    18.0         20.0 26.0 17.0 1.00 A181FM-1820-17
          8.0   +0.025   10.0 15.0 10.0 1.00 A181FM-0810-10   18.0         20.0 26.0 22.0 1.00 A181FM-1820-22
          10.0  +0.083  12.0 18.0  7.0 1.00 A181FM-1012-07    20.0         23.0 30.0 11.5 1.50 A181FM-2023-11
          10.0          12.0 18.0  9.0 1.00 A181FM-1012-09    20.0         23.0 30.0 16.5 1.50 A181FM-2023-16
          10.0         12.0 18.0 10.0 1.00 A181FM-1012-10     20.0         23.0 30.0 21.5 1.50 A181FM-2023-21                       When to use it?
          10.0         12.0 18.0 12.0 1.00 A181FM-1012-12     25.0         28.0 35.0 11.5 1.50 A181FM-2528-11                       ●  When FDA compliance is required
          10.0         12.0 18.0 17.0 1.00 A181FM-1012-17     25.0         28.0 35.0 16.5 1.50 A181FM-2528-16                       ●  When wear resistance and FDA-compliance are necessary at high loads
          12.0         14.0 20.0   7.0 1.00 A181FM-1214-07    25.0  +0.040   28.0 35.0 21.5 1.50 A181FM-2528-21                     ●  When the bearing is used in acid environments
          12.0         14.0 20.0   9.0 1.00 A181FM-1214-09    30.0  +0.124  34.0 42.0 16.0 2.00 A181FM-3034-16
          12.0  +0.032   14.0 20.0 12.0 1.00 A181FM-1214-12   30.0         34.0 42.0 26.0 2.00 A181FM-3034-26
          12.0  +0.102  14.0 20.0 17.0 1.00 A181FM-1214-17    35.0         39.0 47.0 16.0 2.00 A181FM-3539-16
          14.0         16.0 22.0 12.0 1.00 A181FM-1416-12     35.0         39.0 47.0 26.0 2.00 A181FM-3539-26                       When not to use it?
          14.0         16.0 22.0 17.0 1.00 A181FM-1416-17     40.0         44.0 52.0 30.0 2.00 A181FM-4044-30                       ●  When temperatures are continuously higher than +180°C
                                                                                                                                             ®
          15.0         17.0 23.0   9.0 1.00 A181FM-1517-09    40.0         44.0 52.0 40.0 2.00 A181FM-4044-40                          iglidur  A500
                                                              45.0         50.0 58.0 50.0 2.50 A181FM-4550-50                       ●  When the maximum wear resistance is necessary
                                                                                                                                       iglidur  J
                                                                                                                                             ®
          3)  After press-fit. Testing methods, page 61
                                                                                                                                    ●  When a cost-effective FDA-compliant plain bearing is required
                                                                                                                                       iglidur  A200, iglidur  A180
                                                                                                                                             ®
                                                                                                                                                         ®
                                                                                                                                    ●  For high speeds
                                                                                                                                       iglidur  J
                                                                                                                                             ®
