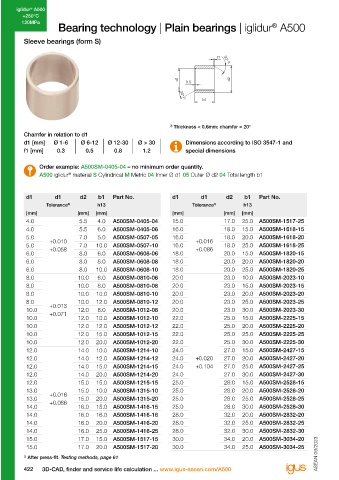

iglidur  A500                                                                                                                                                                                                            iglidur  A500
                                                                                                                                                                                                                                     ®
            ®
         +250°C                                                                                                                                                                                                                   +250°C
         120MPa                                                                                                                                                                                                                   120MPa
                      Bearing technology | Plain bearings | iglidur  A500                                                           Product range
                                                                                                 ®
          Sleeve bearings (form S)                                                                                                  d1         d1      d2     b1   Part No.             d1        d1       d2    b1   Part No.

                                                                                                                                            Tolerance 3)      h13                              Tolerance 3)      h13
                                                                              f1  30°
                                                                                                                                    [mm]               [mm]  [mm]                       [mm]              [mm]  [mm]
                                                                                                                                    30.0     +0.020    34.0  30.0  A500SM-3034-30       40.0              44.0  40.0  A500SM-4044-40
                                                                                                                                    30.0     +0.104    34.0  40.0  A500SM-3034-40       40.0              44.0  50.0  A500SM-4044-50
                                                                d1  0.5           d2                                                32.0               36.0  20.0  A500SM-3236-20       45.0              50.0  20.0  A500SM-4550-20
                                                                                                                                    32.0               36.0  30.0  A500SM-3236-30       45.0              50.0  30.0  A500SM-4550-30
                                                                 30°
                                                                         b1                                                         32.0               36.0  40.0  A500SM-3236-40       45.0    +0.025    50.0  40.0  A500SM-4550-40
                                                                                                                                    35.0     +0.025    39.0  20.0  A500SM-3539-20       45.0    +0.125    50.0  50.0  A500SM-4550-50
                                                                                                                                    35.0     +0.125    39.0  30.0  A500SM-3539-30       50.0              55.0  20.0  A500SM-5055-20
                                                                                                                                    35.0               39.0  40.0  A500SM-3539-40       50.0              55.0  30.0  A500SM-5055-30
                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1                                                                                                 35.0               39.0  50.0  A500SM-3539-50       50.0              55.0  40.0  A500SM-5055-40
          d1 [mm]   Ø 1-6     Ø 6-12   Ø 12-30    Ø > 30           Dimensions according to ISO 3547-1 and                           40.0               44.0  20.0  A500SM-4044-20       50.0              55.0  50.0  A500SM-5055-50
          f1 [mm]    0.3       0.5        0.8       1.2            special dimensions                                                40.0              44.0  30.0  A500SM-4044-30       50.0              55.0  60.0  A500SM-5055-60
                                                                                                                                    3)  After press-fit. Testing methods, page 61
               Order example: A500SM-0405-04 – no minimum order quantity.
               A500 iglidur  material S Cylindrical M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
                         ®

           d1        d1       d2    b1   Part No.             d1        d1       d2    b1   Part No.
                  Tolerance 3)      h13                              Tolerance 3)      h13
           [mm]              [mm]  [mm]                       [mm]              [mm]  [mm]
           4.0               5.5    4.0  A500SM-0405-04       15.0              17.0  25.0  A500SM-1517-25
           4.0               5.5    6.0  A500SM-0405-06       16.0              18.0  15.0  A500SM-1618-15
           5.0     +0.010    7.0    5.0  A500SM-0507-05       16.0    +0.016    18.0  20.0  A500SM-1618-20
           5.0     +0.058    7.0   10.0  A500SM-0507-10       16.0    +0.086    18.0  25.0  A500SM-1618-25
           6.0               8.0    6.0  A500SM-0608-06       18.0              20.0  15.0  A500SM-1820-15
           6.0               8.0    8.0  A500SM-0608-08       18.0              20.0  20.0  A500SM-1820-20
           6.0               8.0   10.0  A500SM-0608-10       18.0              20.0  25.0  A500SM-1820-25
           8.0               10.0   6.0  A500SM-0810-06       20.0              23.0  10.0  A500SM-2023-10
           8.0               10.0   8.0  A500SM-0810-08       20.0              23.0  15.0  A500SM-2023-15
           8.0               10.0  10.0  A500SM-0810-10       20.0              23.0  20.0  A500SM-2023-20
           8.0     +0.013    10.0  12.0  A500SM-0810-12       20.0              23.0  25.0  A500SM-2023-25
           10.0    +0.071    12.0   8.0  A500SM-1012-08       20.0              23.0  30.0  A500SM-2023-30
           10.0              12.0  10.0  A500SM-1012-10       22.0              25.0  15.0  A500SM-2225-15
           10.0              12.0  12.0  A500SM-1012-12       22.0              25.0  20.0  A500SM-2225-20
           10.0              12.0  15.0  A500SM-1012-15       22.0              25.0  25.0  A500SM-2225-25
           10.0              12.0  20.0  A500SM-1012-20       22.0              25.0  30.0  A500SM-2225-30
           12.0              14.0  10.0  A500SM-1214-10       24.0              27.0  15.0  A500SM-2427-15
           12.0              14.0  12.0  A500SM-1214-12       24.0    +0.020    27.0  20.0  A500SM-2427-20
           12.0              14.0  15.0  A500SM-1214-15       24.0    +0.104    27.0  25.0  A500SM-2427-25                               Available from stock                               Ordering note
           12.0              14.0  20.0  A500SM-1214-20       24.0              27.0  30.0  A500SM-2427-30                               Detailed information about delivery time online.   Our prices are scaled according to order
           12.0              15.0  15.0  A500SM-1215-15       25.0              28.0  15.0  A500SM-2528-15                               www.igus-asean.com/24                              quantities, current prices can be found online.
           13.0    +0.016    15.0  10.0  A500SM-1315-10       25.0              28.0  20.0  A500SM-2528-20                               Order online
           13.0    +0.086    15.0  20.0  A500SM-1315-20       25.0              28.0   25.0  A500SM-2528-25                              including delivery times, prices, online tools      Discount scaling
           14.0              16.0  15.0  A500SM-1416-15       25.0              28.0   30.0  A500SM-2528-30                              www.igus-asean.com/A500                             1-9           50-99         500-999
           14.0              16.0  16.0  A500SM-1416-16       28.0              32.0   20.0  A500SM-2832-20                                                                                  10-24         100-199       1,000-2,499
           14.0              16.0  20.0  A500SM-1416-20       28.0              32.0   25.0  A500SM-2832-25                                                                                  25-49         200-499       2,500-4,999
           14.0              16.0  25.0  A500SM-1416-25       28.0              32.0   30.0  A500SM-2832-30                                                                                 No minimum order value.
           15.0              17.0  15.0  A500SM-1517-15       30.0              34.0   20.0  A500SM-3034-20                                                                                 No low-quantity surcharges.
           15.0              17.0  20.0  A500SM-1517-20       30.0              34.0   25.0  A500SM-3034-25                                                                                 Free shipping within Germany for orders

          3)  After press-fit. Testing methods, page 61                                                          ASEAN 09/2023   ASEAN 09/2023                                              above €150.
          422   3D-CAD, finder and service life calculation ... www.igus-asean.com/A500                                                                         Lubrication-free made easy ... from stock ... no minimum order quantity  423
