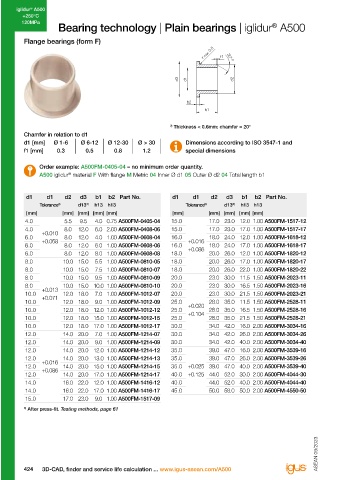

Page 426 - IGUS Bearing

iglidur A500
®
+250°C
120MPa
Bearing technology | Plain bearings | iglidur A500
®
Flange bearings (form F)
r max. 0.5 f1 30°

d3 d1 d2

b2
b1

2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: A500FM-0405-04 – no minimum order quantity.
A500 iglidur material F With flange M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1 The all-rounder for food
®
FDA-compliant
d1 d1 d2 d3 b1 b2 Part No. d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13 Tolerance 3) d13 3) h13 h13
®
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] iglidur A180
4.0 5.5 9.5 4.0 0.75 A500FM-0405-04 15.0 17.0 23.0 12.0 1.00 A500FM-1517-12
4.0 +0.010 8.0 12.0 6.0 2.00 A500FM-0408-06 15.0 17.0 23.0 17.0 1.00 A500FM-1517-17
6.0 +0.058 8.0 12.0 4.0 1.00 A500FM-0608-04 16.0 +0.016 18.0 24.0 12.0 1.00 A500FM-1618-12
6.0 8.0 12.0 6.0 1.00 A500FM-0608-06 16.0 +0.086 18.0 24.0 17.0 1.00 A500FM-1618-17
6.0 8.0 12.0 8.0 1.00 A500FM-0608-08 18.0 20.0 26.0 12.0 1.00 A500FM-1820-12 When to use it?
8.0 10.0 15.0 5.5 1.00 A500FM-0810-05 18.0 20.0 26.0 17.0 1.00 A500FM-1820-17 ● When the bearings have direct contact with food
8.0 10.0 15.0 7.5 1.00 A500FM-0810-07 18.0 20.0 26.0 22.0 1.00 A500FM-1820-22 ● When FDA compliance is required
8.0 10.0 15.0 9.5 1.00 A500FM-0810-09 20.0 23.0 30.0 11.5 1.50 A500FM-2023-11 ● When a low noise level is required
8.0 10.0 15.0 10.0 1.00 A500FM-0810-10 20.0 23.0 30.0 16.5 1.50 A500FM-2023-16 ● When low moisture absorption is fundamental
10.0 +0.013 12.0 18.0 7.0 1.00 A500FM-1012-07 20.0 23.0 30.0 21.5 1.50 A500FM-2023-21
+0.071
10.0 12.0 18.0 9.0 1.00 A500FM-1012-09 25.0 +0.020 28.0 35.0 11.5 1.50 A500FM-2528-11
10.0 12.0 18.0 12.0 1.00 A500FM-1012-12 25.0 +0.104 28.0 35.0 16.5 1.50 A500FM-2528-16
10.0 12.0 18.0 15.0 1.00 A500FM-1012-15 25.0 28.0 35.0 21.5 1.50 A500FM-2528-21 When not to use it?
10.0 12.0 18.0 17.0 1.00 A500FM-1012-17 30.0 34.0 42.0 16.0 2.00 A500FM-3034-16 ● When the maximum wear resistance is necessary
®
12.0 14.0 20.0 7.0 1.00 A500FM-1214-07 30.0 34.0 42.0 26.0 2.00 A500FM-3034-26 iglidur J
12.0 14.0 20.0 9.0 1.00 A500FM-1214-09 30.0 34.0 42.0 40.0 2.00 A500FM-3034-40 ● When temperatures are continuously higher than +80°C
®
®
12.0 14.0 20.0 12.0 1.00 A500FM-1214-12 35.0 39.0 47.0 16.0 2.00 A500FM-3539-16 iglidur A350, iglidur A500
12.0 +0.016 14.0 20.0 13.0 1.00 A500FM-1214-13 35.0 39.0 47.0 26.0 2.00 A500FM-3539-26 ● When a cost-effective universal plain bearing is required
®
®
12.0 +0.086 14.0 20.0 15.0 1.00 A500FM-1214-15 35.0 +0.025 39.0 47.0 40.0 2.00 A500FM-3539-40 iglidur G, iglidur P
12.0 14.0 20.0 17.0 1.00 A500FM-1214-17 40.0 +0.125 44.0 52.0 30.0 2.00 A500FM-4044-30
14.0 16.0 22.0 12.0 1.00 A500FM-1416-12 40.0 44.0 52.0 40.0 2.00 A500FM-4044-40
14.0 16.0 22.0 17.0 1.00 A500FM-1416-17 45.0 50.0 58.0 50.0 2.00 A500FM-4550-50
15.0 17.0 23.0 9.0 1.00 A500FM-1517-09
3) After press-fit. Testing methods, page 61

ASEAN 09/2023 ASEAN 09/2023

424 3D-CAD, finder and service life calculation ... www.igus-asean.com/A500
